2つのモデリング・カーネル、
多くの可能性
世界中の400社以上の企業で使用されている成熟し高度に最適化されたモデラーであるACISか、最先端の機能を備えておりCATIA V6で使用されているモデラーであるCGMのいずれかを選択できます。


CGM Modeler
The ultimate modeling technology for the next generation of 3D applications. Create, modify, query and visualize 3D data with CGM Modeler.


3D ACIS Modeler
This long-standing platform is the leading 3D geometric modeling kernel. Offering enhancements for millions of users, ACIS Modeler has facilitated decades of industrialization.
スペイシャルとのパートナーシップで、長期的な3Dアプリケーションを成功を目指す
3Dモデリング・ソフトウェア開発ツールキットのパワーを活用して、収益を高めましょう。
スペイシャルは、3D CGM Modelerと3D ACIS Modelerという業界をリードする機能を提供しています。これらのモデリング カーネルは、クラウド、モバイル デバイス、データセンターなど、あらゆるソフトウェア アーキテクチャにシームレスに統合できます。
ACIS Modelerは、30年以上にわたって3D形状モデリングカーネル市場をリードしてきた私たちのレガシーモデラーであり、CGM Modelerは、次世代の3Dアプリケーションのための究極のモデリング技術を提供します。また、最適な部品およびアセンブリ設計のためのConstraint Design Solver(CDS)も提供しています。
私たちのモデラーの能力は、単にモデリングエンジンを提供するだけにとどまりません。多面体の3Dデータを扱うことができるCGM Polyhedraや、モデルの自動簡略化を可能にするCGM Defeaturingなどのアドオン一式と組み合わせることで、あなたの組織は独自の開発目標を達成することができます。
スペイシャル を選ぶことで、アプリケーションのライフタイム全体にわたる専門家とのパートナーシップの恩恵を受けることができます。

ソフトウェア開発キットで
差別化を実現
アプリケーション開発のスピードアップ
CGM Modelerと3D ACIS Modelerはどちらも、3Dアプリケーション開発と相互運用性のための強固な基盤を提供します。十分にテストされ、業界で実証されたソリューションを活用することで、開発者は開発リスクを大幅に軽減できます。
開発コストの削減
市場投入までの時間を短縮し、開発者をモデリングツールの開発から解放することで、開発コストを削減します。リスクの低減は、ユーザー満足度の向上とROIの上昇も意味します。
3Dアプリケーションの差別化
CGM Modelerであれ、3D ACIS Modelerであれ、開発者は独自の製品機能を提供することに集中できます。私たちの3DモデリングSDKは、あなたの技術革新に重要なスタートを提供します。
収益までの時間を短縮
スペイシャルのモデリング製品は、高品質な3Dソフトウェア開発ツールキットの基盤を提供することで、開発作業を簡素化し、必要なリソースを削減することで、アプリケーションの納期を短縮します。
さらなる可能性を
SDKアドオンで
私たちのSDKと最先端のアドオンを組み合わせることで、開発能力を次のレベルに引き上げることができます。

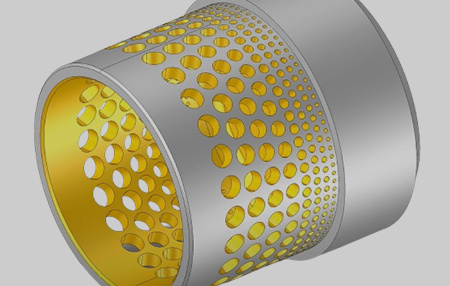

CGM Polyhedra
Benefit from groundbreaking additions to precise modeling, such as automated healing, data preparation and data analysis.

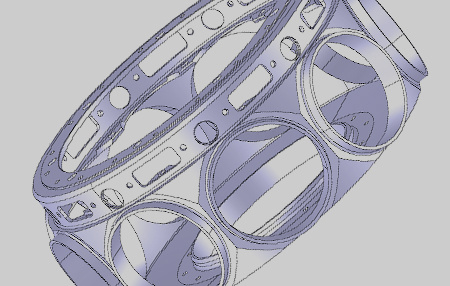

CGM Defeaturing
Deliver automation in your application by removing hole or fillet features in one step without requiring user input.

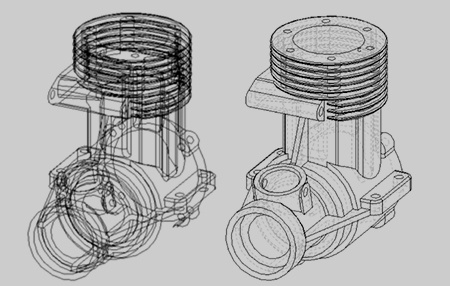

CGM HLR
Produce easy-to-interpret drawing data by calculating visible, hidden, silhouette and occluded lines of a 3D model from different perspectives.

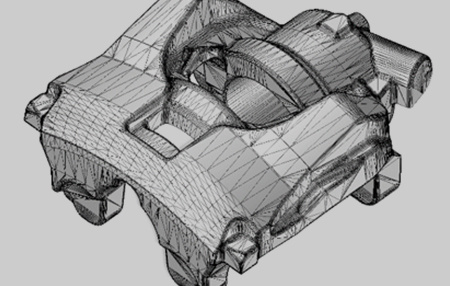

ACIS Polyhedra
Convert ACIS B-Rep bodies into meshes or import meshes directly into 3D ACIS Modeler for advanced model manipulation and preparation.
モデリングSDKの主な機能
業界をリードする
SDK機能をご利用ください。


3D形状のモデリングと編集
クラス最高のB-Repオペレータを使用して、3Dジオメトリを正確に作成および修正できます。これらの機能は、ブーリアン演算、ブレンディング、ダイレクト編集、厚み付け、オフセットなどのロバストな演算により、サーフェスおよびソリッドモデリングをサポートし、履歴のないダイレクト編集CADとヒストリベースCADの両方アプリケーションに対応します。


フィーチャ除去と単純化
穴、パッド、ポケット、フィレット、面取り、くぼみ、突起、ブレンドなどのフィーチャーを識別および認識します。この機能は、フィーチャー認識の動作を制御するオプションを提供し、製造の自動化とモデルの単純化を支援します。


マルチプラットフォームおよび複数の開発言語サポート
私たちの3DモデリングSDKは、Windows、Linux、Macの各プラットフォームに対応しており、デスクトップおよびWebアプリケーションの開発が可能です。アプリケーションのパフォーマンスを最適化するために、高性能なC++言語とユーザーフレンドリーなC#言語をサポートしています。


パフォーマンスと高精度モデリング
マルチスレッド化されたAPIとマルチコア環境のサポートにより、パフォーマンスとメモリ管理を高水準で維持します。モデルの妥当性を維持し、操作中の公差に対応するトレラントモデリングにより、ネイティブモデルとインポートモデルの精度を確保します。


多面体モデリングと解析

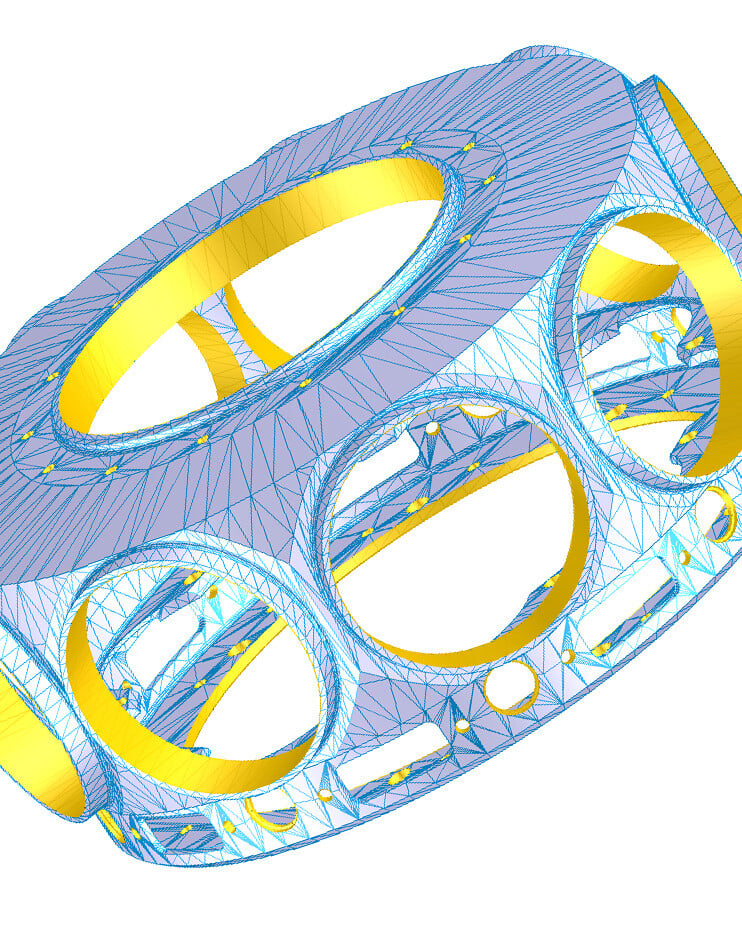

医療、地形、スキャンオブジェクトなど、さまざまなソースから多面体データをインポートして扱えます。ブーリアン演算、オフセット、衝突検出、デシメーション、スライスなどのロバストな操作を実行できます。そして、穴のカバー、ファセットエッジのスティッチング、向きの修正、スライバの除去などで、モデルを修復できます。
ワークフローの可能性を引き出す
時間の節約
スペイシャルのテクノロジーをワークフローに導入することで、市場投入までの時間を短縮できます。この時間を、貴社のIP、独自の価値提案、そして顧客に優れた製品を提供することに集中するために使ってください。プロジェクト投資の削減
すぐに使えるコンポーネントをワークフローにすばやく統合することで、何時間もかけてソフトウェアを開発することなく、卓越した結果を得ることができます。ワークフローの改善
業界をリードする私たちの専門知識で、開発リソースの不足を補いましょう。当社のソフトウェアを使用してワークフローに変革をもたらし、高い技術水準を容易に実現します。エンドユーザー
スペイシャルのモデリング・カーネルが統合されたソフトウェアを利用しています
年
CADおよび3Dモデラーの開発経験
企業の顧客
世界中で

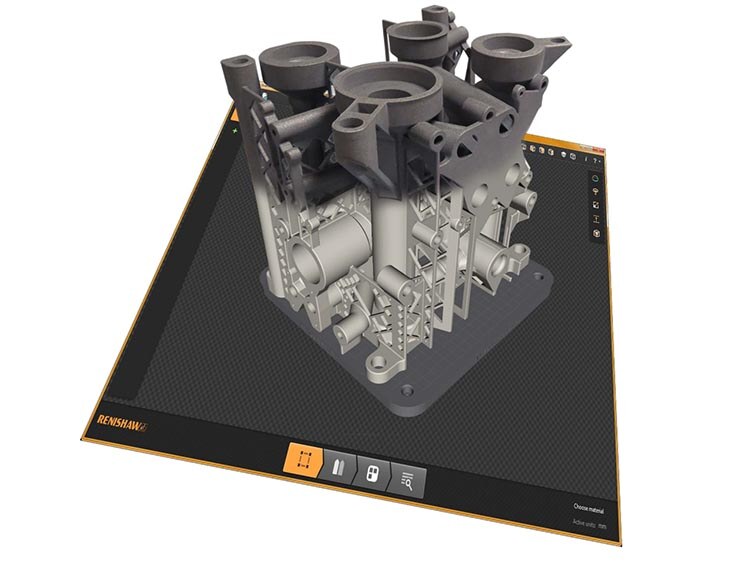

Our collaboration with Spatial now allows us to not only perform high-quality healing on STL files but, more importantly, to import various CAD formats directly.
Stephen Anderson, Director of Group Software, Renishaw
