What is a JT file?

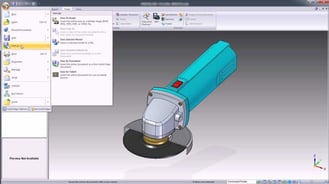

JT is commonly used as a lightweight representation of product data in CAD and PLM environments. Siemens describes it as an openly published format used for communication, visualization, digital mockup, supplier collaboration, and long-term data retention across manufacturing workflows.
At its core, JT is a scene-graph-based CAD format. According to the Library of Congress summary of the JT specification, the format can store triangles, materials, textures, lights, PMI, metadata, representation configurations, and precise part definitions such as B-rep geometry. That makes JT more than a simple viewer mesh format.
What kind of data can JT contain?
A JT file can represent both lightweight faceted geometry and richer engineering content. Depending on how it is authored, it may carry several kinds of data:
| Content |
Purpose |
| Tessellated geometry |
Fast display of large assemblies |
| Exact (B-rep) geometry |
Precise reuse in downstream engineering |
| Assembly structure |
Organizing parts and product hierarchy |
| Attributes and metadata |
Carrying product context for review and collaboration |
| PMI |
Product manufacturing information such as tolerances and annotations |
This flexibility is one reason JT is widely used in PLM contexts. A single format can support fast visualization for large assemblies while still carrying enough product context for collaboration, markup, review, and downstream engineering workflows.
Is JT a neutral format?
JT is best described as an openly published, ISO-standardized exchange and visualization format rather than as a native format tied to a single CAD authoring workflow. Siemens states that JT was accepted by ISO as ISO 14306, and ISO describes that standard as defining a file format for the 3D visualization and interrogation of lightweight geometry and PMI derived from CAD systems.
Applications and Industry Use Cases
JT is widely used in manufacturing, product lifecycle management, supplier exchange, digital mockup, and design review. Its lightweight nature makes it useful when teams need to share large assemblies efficiently across departments or organizations without exchanging full native CAD datasets.
It is especially valuable in multi-CAD environments, where different stakeholders use different authoring tools but still need a common 3D representation for review and collaboration. Siemens positions JT as a format used across manufacturing supply chains for exactly this purpose.
Challenges or Common Pitfalls
A common mistake is to assume that every JT file contains the same level of detail. In reality, JT can range from a lightweight faceted representation to a richer file containing exact geometry, PMI, and metadata, so downstream usefulness depends on how the file was generated.
Another pitfall is to treat JT as a full substitute for every native CAD workflow. JT is excellent for sharing, viewing, and many collaboration scenarios, but the receiving application still needs appropriate support if exact geometry, PMI interpretation, or deeper engineering reuse is required.
How Spatial Helps
Spatial handles JT through its CAD interoperability technology, so applications can do more than view JT files.
3D InterOp reads and writes JT alongside the other major CAD formats it supports, exchanging tessellated geometry, exact B-rep, PMI, and metadata. It also handles JT-specific detail: it imports multiple levels of detail from a JT file and reads visual material properties during import.
That matters when a team needs to bring JT data into a broader engineering pipeline, not just display it. 3D InterOp pulls JT geometry and product context into workflows for translation, reuse, and downstream processing alongside other major CAD formats.
