EDAソフトウェアをスペイシャルの3D SDKで改善する

3Dモデリングと解析への革新的なアプローチを通じて、より高いレベルの自動化、より高い品質、性能向上に対するEDA設計ソフトウェアの顧客の要求に応えましょう。スペイシャルのソフトウェア開発キット(SDK)は、3Dモデリングの専門知識をアプリケーションに統合します。

background-glow
課題

EDA企業にとっての重要な課題

Group (53)
設計ワークフローとのシームレスな統合
業界標準のデータ形式やシステムとの互換性を含め、EDAソフトウェアが既存の電子設計ワークフローとスムーズに統合できるようにすること。

Group 204
最適化されたメッシュ作成とソルバー準備
熱解析やSI解析などのシミュレーションのための効率的なメッシュの作成を自動化し、同時に特定のソルバーに対してメッシュを最適化すること。

Group (66)
設計変更と材料特性の管理
上流の設計変更を自動的に反映させるためにCADの関連付けをサポートすること、そして正確なシミュレーションのモデル化のために材料特性をインポートすること。

Group (28)-1
コストと競争力のある価格のバランス

EDA市場で競争するために、手頃な価格を維持しながら、研究開発と高度なツール開発にかかる高コストを管理すること。

エダピクチャー7
エダピクチャー6
エダピクチャー2

スペイシャルのSDKで
EDA業界の共通の課題に対応する

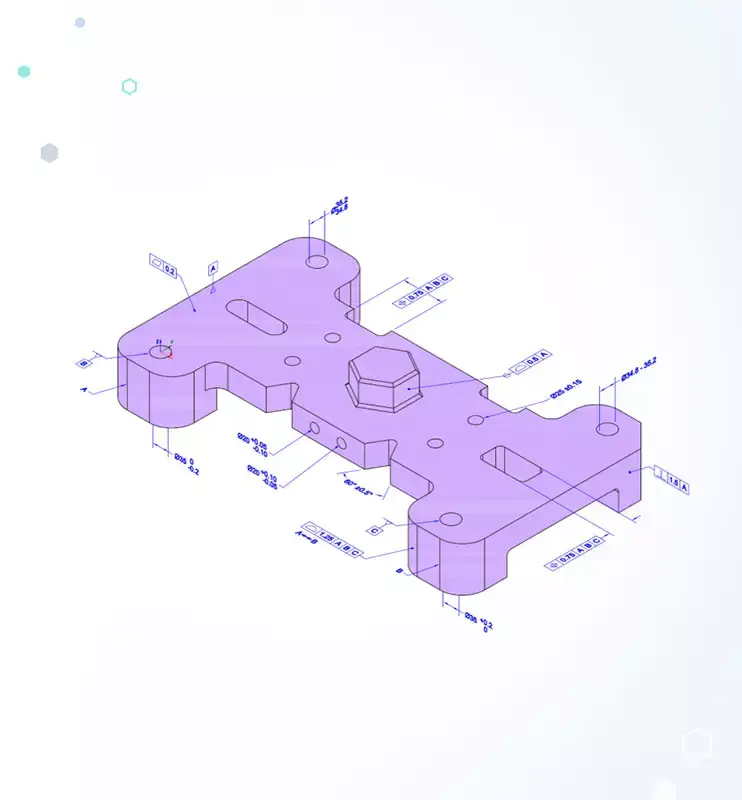

高品質なCADインポート

3D InterOpは、B-repジオメトリや非正確なジオメトリの両方を扱う高度なCADのインポートを可能にします。アプリケーションは、シームレスで統一された方法で、幅広いCADフォーマットを扱うことができます。

シミュレーション種類に応じた編集

シミュレーションの種類に合わせて設計形状を編集する必要がある場合、CGM Modelerが解決策となります。通常、これはメッシャーを実行する前に、ブーリアン演算を使用してすべてを統合することを意味します。これにより、重なり合った三角形や不揃いの三角形がメッシュに存在しないようにします。

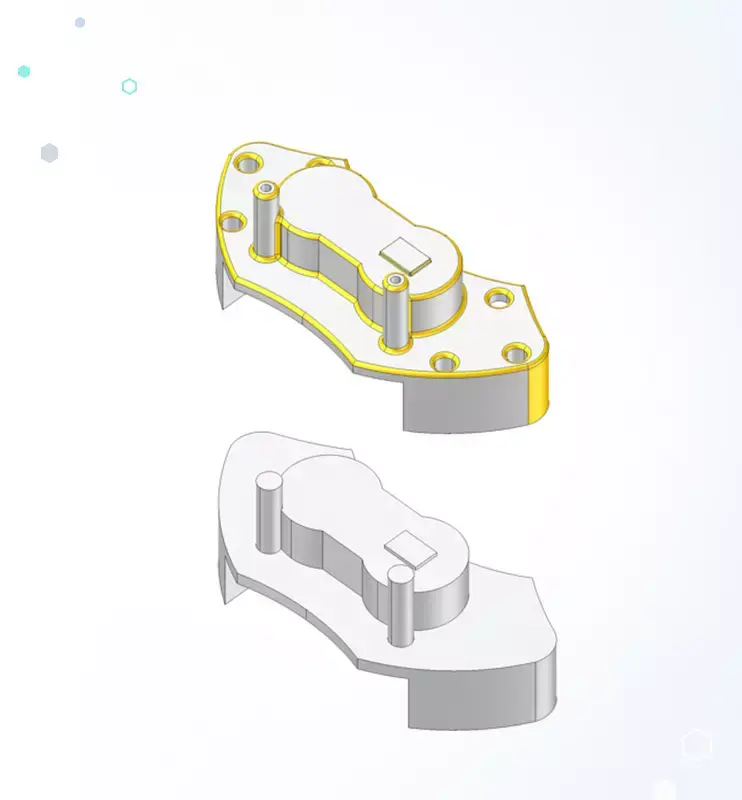

シミュレーションのための設計準備

CGM Defeaturingは、シミュレーションの観点からは不要となる詳細な設計形状を削除します。小さな穴は部品の強度には影響しませんが、メッシュに大量の要素を生成するためソルバーのパフォーマンスに影響します。

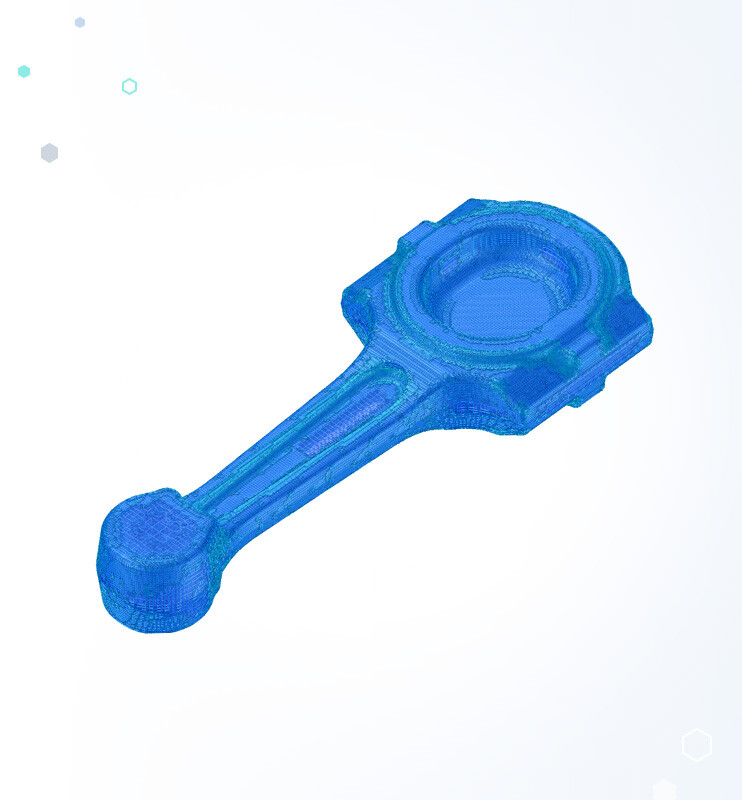

CAE向けの高品質メッシュ生成

3D Precise Meshは、プロトタイピングコストと設計時間を最小限に抑え、シミュレーション精度を向上させ、シミュレーションリソースを効率的に使用するための完全なソリューションを提供します。鉄骨構造の解析、風荷重のCFDシミュレーション、熱解析など、市場で実績のあるメッシャーです。

ワークフローベースのソリューション

EDAアプリケーション向けの
カスタムワークフロー

エレクトロニクス設計では、ワークフローにCAEツールとEDAツールの両方が含まれることがよくあります。設計ツールやシミュレーション ツールの開発者の場合、ワークフローは通常、繰り返し実行されるため、製品やプロセスの最適化を目指すことになります。

https://10956.fs1.hubspotusercontent-na1.net/hubfs/10956/workfloweda4.webp

1.モデルのロード/インポート

  • 高速な可視化インポート
  • 選択的B-Repインポート
  • CADとの関連付け

https://10956.fs1.hubspotusercontent-na1.net/hubfs/10956/workfloweda.webp

2.モデルの準備と簡略化

  • ヒーリング
  • 無関係なオブジェクトやフィーチャを削除
  • 単純化

https://10956.fs1.hubspotusercontent-na1.net/hubfs/10956/workfloweda3.webp

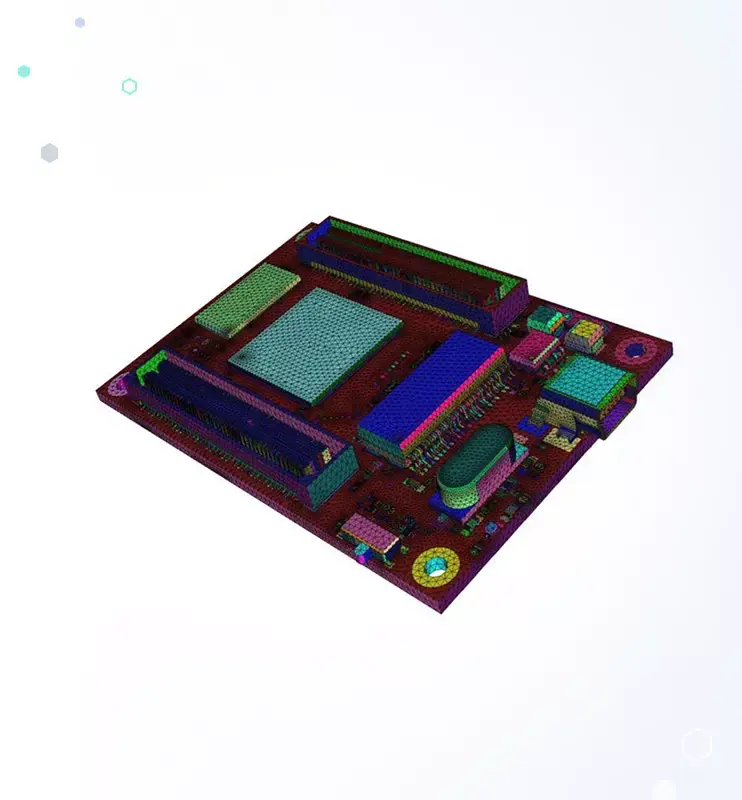

3.編集、拘束の適用、メッシュ作成

  • シングルボディ戦略
  • サーフェスメッシュ生成
  • ボリュームメッシュ生成

https://10956.fs1.hubspotusercontent-na1.net/hubfs/10956/eda.jpg

4.シミュレーションを解く:ソルバー

  • 電磁効果、熱効果など

https://10956.fs1.hubspotusercontent-na1.net/hubfs/10956/featureeda2.jpg

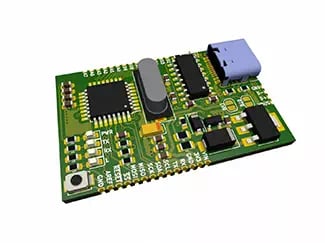

5.シミュレーションのレンダリング

  • 結果の可視化と分析
  • デスクトップまたはWebブラウザ

EDAアプリケーションのアップグレード

EDAワークフロー向けに構築された機能

EDAユーザー向けに設計された特定の機能を備えたソリューションは、アプリケーションにメリットをもたらします。
アプリケーションが、集積回路やプリント基板向けであるか、あるいはプロセスTCADやデバイスTCADを組み込んだアプリケーションであるかに関わらず、
スペイシャル SDKの機能は、アプリケーションが開発目標を達成するのに役立ちます。

包括的な設計のためのシームレスなデータ統合
高度なモデル調査とメッシュ作成
電子設計のための堅牢な可視化
高度なシミュレーションとエミュレーションのサポート
フィーチャリーダ3

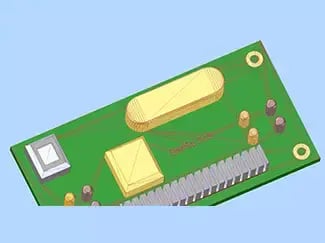

包括的な設計のためのシームレスなデータ統合

エレクトロニック・モデリングにおける容易な一貫性

スペイシャルのSDKは、アプリケーションのICレイアウト、テクノロジファイル、パッケージ、PCBレイアウトからの直接データ統合をサポートしています。この機能により、シームレスなモデル作成と、オンチップ、パッケージング、PCB設計および解析を含むエレクトロニクス設計のさまざまな側面にわたるデータの一貫性が保証されます。

フィーチャリーダ

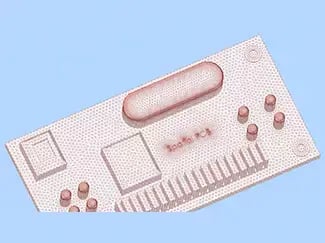

高度なモデル調査とメッシュ作成

解析とシミュレーションの強化

スペイシャルのソフトウェア開発ツールキットは、洗練されたモデル調査とメッシュ生成機能を提供します。これらの機能は、電子設計において詳細な解析とシミュレーションを行うために不可欠であり、モデルのあらゆる側面が正確に考慮され、最適化することを保証します。

フィーチャリーダ2

電子設計のための堅牢な可視化

視覚的な明瞭さと洞察

スペイシャルの強化された可視化ツールにより、電子部品をより深く理解し、より明確に分析することができます。これらのツールは、設計を鮮明かつ詳細に表現し、より適切な意思決定と設計の最適化を支援します。

フィーチャリーダ4

高度なシミュレーションとエミュレーションのサポート

革新的なモデリングとデバイスの動作解析

スペイシャルは、エレクトロニクス設計におけるシミュレーションとエミュレーションの両方を強力にサポートします。これらの高度な機能は、物理特性を正確にモデル化してデバイスの挙動を理解し、電子部品の信頼性と性能を向上させるために不可欠です。

エダピクチャー5
エダピクチャー
エダピクチャー4

なぜスペイシャルのSDKで開発するのか?

EDAアプリケーションにおける物理解析には、高性能な3D形状作成、モデリング、メッシング、表示機能が必要です。多くの開発者にとって、アプリケーションを完成させるための答えは明確です。専用の3Dソフトウェア コンポーネントを使用することで、コストとリスクを抑えながら、より迅速に市場に投入することができます。
グループ(28)-1

市場投入期間の短縮

スペイシャルのSDKを使用することで、開発期間を大幅に短縮することができます。すぐに使用できる高品質なコンポーネントを提供することで、これらのツールキットは、競争の激しいEDA業界で重要な、新しいソリューションを迅速に市場に投入するのに役立ちます。
グループ (27)

カスタマイズと柔軟性

スペイシャルは高度なカスタマイズ性と柔軟性を備えており、EDA開発者はSDKを特定のニーズに合わせてカスタマイズすることができます。この適応性は、ユニークな課題や顧客要件に対応する上で鍵となります。
アイコン

高い性能と品質

スペイシャルのSDKは、最新のEDAアプリケーションの要求性能に対応するように構築されており、開発されたソリューションが効率的であるだけでなく、堅牢で信頼できることを保証します。
グループ(19)-1

包括的なサポートとコミュニティ

スペイシャルは強力なサポートを提供し、ユーザーと専門家のコミュニティを持っています。このネットワークは、トラブルシューティング、ベストプラクティスの共有、最新の進歩の維持のために非常に貴重です。

スペイシャルと始めよう

3Dアプリケーションのワークフローを次のレベルに引き上げるテクノロジーはありますか?スペイシャルのエキスパートにご相談ください。
