Meshing with 3D Precise Mesh is automatic and reliable, with controls to guarantee accurate and performant simulations for any CAE workflow.

Request an evaluation

Reduce Prototyping Costs and Design Times With Our 3D Mesh Software

Enhance simulation accuracy without burdening simulation resources with 3D Precise Mesh.

  • Ensure high-fidelity simulations and reduce the risk of human error with an advanced 3D mesh generation tool.
  • Optimize meshes while preserving model accuracy to reduce simulation resources required.
  • Allow users to generate mesh automatically while retaining the ability to control mesh parameters.
3D Mesh Generation Software
View Product Videos
Visit our 3D Precise Mesh Playlist on YouTube

Request an Evaluation

Fully Featured Mesh Solutions

Simulation-Driven Design

By leveraging features such as automatic CAD associativity and periodic meshing, 3D Precise Mesh enables the meshing step to be transparent to the users so they can focus on their design.

Focus on Your Value-Add

High-end meshing capabilities with associativity to the CAD model allow developers to focus on their innovation. 3D Precise Mesh's integration with market modelers, and especially a tight integration with CGM & 3D ACIS Modelers, help further automate workflows and reduce development time.

Surface Meshing

Generate quality surface meshing with the prescribed size and curvature, with very little input, for CAD and tessellated models. Utilize the appropriate element type for your solver, including triangle or quadrangle and linear or quadratic.

Optimized for CAD

Simulation-dedicated options such as patch-independency or self-intersection prevention, ensure high-quality surface meshing of CAD models.

Volume Meshing

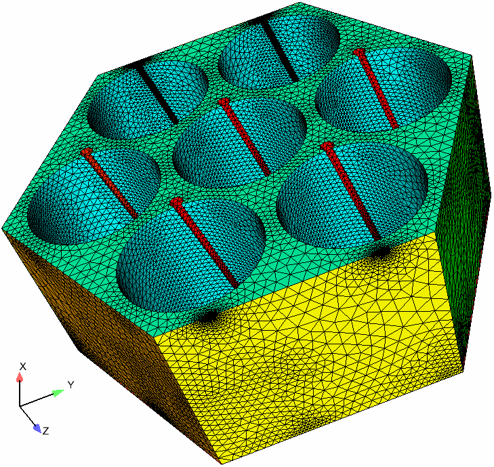

High-quality tetrahedral, hexahedral and hybrid 3D meshes may be generated by combining surface and volume meshing with additional features such as proximity detection for local refinements.

Tetrahedral Meshing Program

Automatic, reliable, and fast meshing technology with extensive ability to control the size, shape, order, and quality. Developers can tune the tet-mesh parameters to meet solver expectations.

Automatic Boundary Layer Generation

By controlling the growth of boundary layers, preventing collisions in thin areas, managing corners, and smoothing the transitions between regions, 3D Precise Mesh enables high quality and automatic boundary layer generation.

Hybrid & Hexahedral Mesh Generation

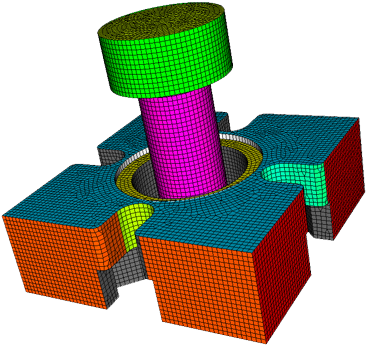

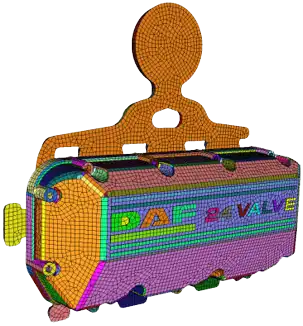

A hexahedral meshing algorithm can produce full hex and conformal 3D meshes that are required by some CAE solvers. Benefiting from the advantages of each type of mesh including Hex, Tet, Pyramid and Prism, the volume meshing algorithms may be assembled to generate hybrid meshes.

“Spatial is essential to our software and have continuously met our expectations. Without it we couldn’t be competitive in the CMM market.”

Dr. Ing. Dieter Loebnitz
Mitutoyo

eBooks, White Papers, and Tutorials

What is Mesh Generation

Meshing is often used in software-based simulation for Finite Element Analysis (FEA) and Computational Fluid Dynamics (CFD). It can significantly impact the accuracy of the simulation and the resources required to perform the simulation.

For the definition of meshing, types of meshing, and how to optimize meshes, keep reading.

Read More

See How FVA Accelerates Support for New and Updated CAD Formats

“Working with Spatial enables our small and highly competent development team, staffed by the top experts from the industry, to focus on our core competency: numerical simulations. Thus, we are able to respond quickly to changes in the dynamic technology environment and new requirements from our customers.” — Norbert Haefke, CEO, FVA GmbH

Read More

3d Modeling and Analysis in Eda Applications

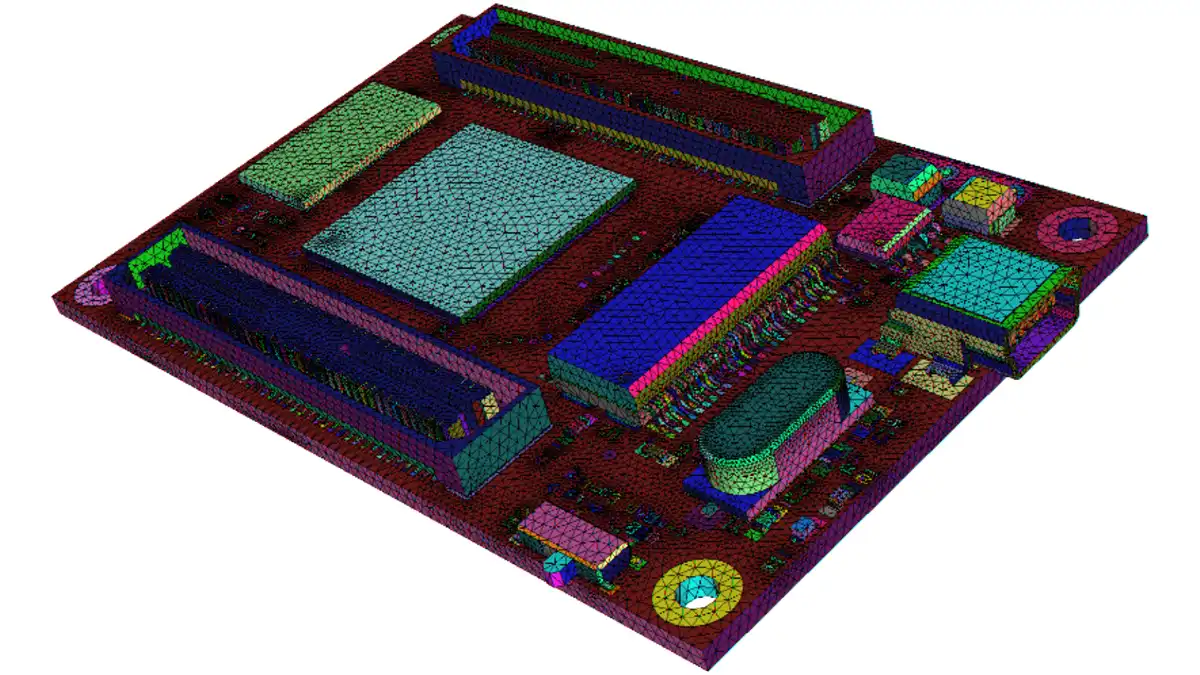

For Electronic Design Automation (EDA) applications, 3D physical analysis has moved into the mainstream, reducing the need to re-design and delivering more predictable product performance and reliability. Learn about the physical characteristics that are critical to the delivery of high-quality products.

Read More

Make Data Preparation for Simulation Easy

Learn how you can easily add simulation to your application or automate interface (contact) detection in your existing CHT or CFD simulation applications. Pre-recorded webinar. Speaker: Shweta Singh, Technical Marketing at Spatial

Read More

Optimize Data Preparation in Your Simulation Application with Automated Interfacing & Robust Meshing

Spatial’s modular SDKs allow Simulation application developers to reduce data preparation times & enhance the accuracy of their simulations.

Read More

Streamline Your Customers' CAD Workflows

3D-Tool implemented Spatial's 3D InterOp in just 4 months and:

  • Upgraded existing customers
  • Acquired new customers
  • Raised revenues over 30%

See How

Companies That Rely on Our 3D Mesh Generation Software

fva
buildit
SAMIN_2016_CS
borm
Dukin_CS_2016_FINAL
VirtualMotion
Nikkei_2016_CS

See How Your Design Will Perform With Mesh Generation Software

Reduce Prototyping Costs and Design Cycle Times

Optimize your product development cycle, and get products to market faster with our mesh generation software.

Using our computer-aided engineering tools, you’ll be able to mesh in 3D, assess designs, identify problems, and address them, enabling faster high-level analyses downstream in the development phase.

That means you’ll be able to reduce prototyping costs, design times, and minimize backlogs with our mesh 3D software.

Meshing Program
Hexahedral Mesh Generation

Reduce Data Preparation Times

Slash the time it takes to prepare 3D mesh models for analysis while enhancing the accuracy of simulations with Spatial’s modular SDKs.

CGM Modeler’s non-regularized Booleans automates essential design functions, which significantly simplifies the simulation setup stage.

Improve the accuracy of simulation results with 3D mesh model tools that allow you to visualize and fix errors in design.

Reliable Meshing Solution for Demanding Simulation Workflows

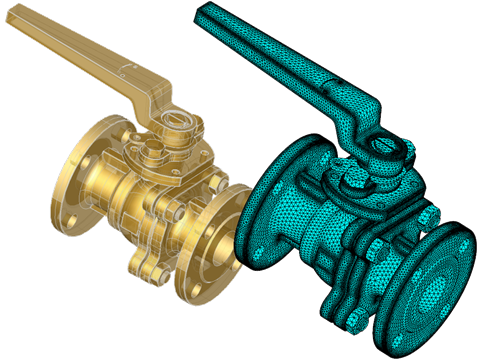

3D Precise Mesh is able to generate a surface mesh with good quality elements over high curvature areas while keeping the total number of elements fairly low.

Coupled with CGM Modeler, you can generate a volumetric mesh for tetrahedra that accurately follows the input surface mesh.

It offers the ability to remove over-constrained tetrahedra, diagnose and correct self-intersections in the surface mesh, as well as generate quadratic order type 3D meshes.

3D meshes
mesh in 3D

Elevate the 3D Mesh Modeling User Experience

3D Precise Mesh generates optimal quality tetrahedrons in just one step, letting you generate millions of tetrahedrons per minute.

Minimize the effort involved in mesh generation for CFD and streamline every stage of the product design cycle.

Using Spatial’s automatic meshing SDK, you can concentrate on building the physics and solver simulation application.

Simulation Driven Design

By leveraging features such as automatic CAD associativity and periodic meshing, 3D Precise Mesh enables the meshing step to be transparent to the users so they can focus on their design.

Focus on Your Value-Add

High-end meshing capabilities with associativity to the CAD model allow developers to focus on their innovation. 3D Precise Mesh's integration with market modelers, and especially a tight integration with CGM & 3D ACIS Modelers, help further automate workflows and reduce development time.

Mesh Generation Software
View Product Videos
Visit our 3D Precise Mesh Playlist on YouTube

Convergent Surface Mesher (CSM) and Convergent Volume Mesher (CVM)

New Mesh Generation Interfaces

Convergent Surface Mesher (CSM)

CSM is an all-encompassing surface meshing solution that consolidates various technologies into a single, user-friendly component. Built on the foundation of industry-proven MeshGems technology, CSM has been meticulously crafted to simplify and optimize the surface meshing experience for both application developers and end-users, enhancing efficiency and user-friendliness. It offers high-performance triangle, mixed, and quadrilateral surface meshing with a robust C++ interface for streamlined and straightforward mesh generation for complex workflows.

CSM
CVM

Convergent Volume Mesher (CVM)

CVM is a comprehensive volume meshing solution that effortlessly consolidates various volume meshing technologies into one versatile component. Following the same guidelines as CSM, CVM is built on MeshGems algorithms, emphasizing ease of use and optimizing the volume meshing experience for both application developers and end-users. Bid farewell to the challenges of dealing with intricate APIs and navigating complex code for fundamental meshing tasks. Application developers can effortlessly incorporate meshing technologies, refining end-user workflows for improved usability.

Contact Us To Learn More
