Produce easy to interpret drawing data by calculating visible, hidden, silhouette and occluded lines of a 3D model from different perspectives.
Analyze models from specific view angles

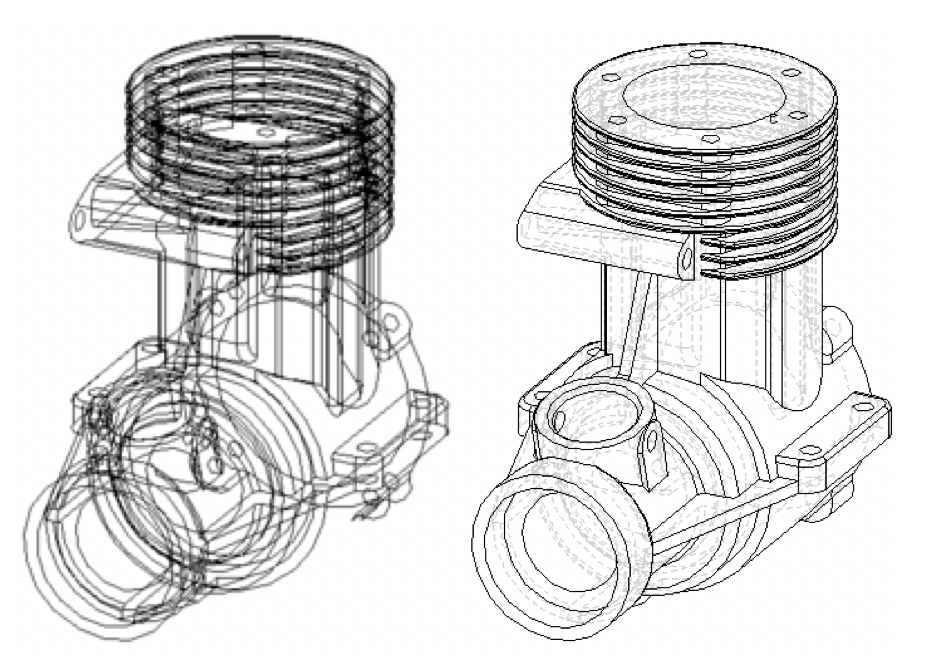

CGM HLR generates precise hidden line information for 2D drawing sheets by analyzing models in specific views and determining if lines are visible, occluded or hidden.
Generate dimensions for 3D parts
Hidden line information is associated to the original CAD model allowing you to calculate curves for their dimensional length.
View Product Videos
Visit our HLR Playlist on YouTube
Analyze models from specific view angles
CGM HLR generates precise hidden line information for 2D drawing sheets by analyzing models in specific views and determining if lines are visible, occluded or hidden.
CGM HLR Features Include:
Visibility
Calculate visible properties for optimal drawing sheet curves which are visible, hidden, occluded, and more.
Precise Information
CGM HLR provides rapid and precise hidden line results on large complex 3D models.
