3D ACIS Modeler

服务于全球领先工业 3D 软件应用程序的成熟解决方案

30 多年来,3D ACIS Modeler 引领着 3D 建模内核市场,在数十年的工业化过程中,为数百万用户提供了改进和增强功能。 Spatial 持续与我们的 ACIS 客户合作开发解决方案,以应对核心行业挑战并扩大其领导力。


基于 ACIS 的应用程序利用公认的建模操作质量(例如布尔运算),这是 Spatial 与设计、分析、制造和测量行业领导者 30 多年合作的直接结果。


Spatial 专家积极了解和支持客户需求与战略,确保基于 ACIS 的应用程序持续取得成功。

3D ACIS Modeler Videos
View Product Videos
Visit Our ACIS Playlist on YouTube


得益于 3DEXPERIENCE® 和 CGM 生态系统创新,通过集成 CAD 互操作性、可视化、网格划分、多面体建模、约束建模和隐藏线消除等附加技术,可扩展应用程序的范围。

3D ACIS Modeler 的功能包括:

创建 3D 模型

3D ACIS Modeler 支持使用多种建模方法,从简易模型到复杂装配体进行几何创建、修改和查询。  无论是需要直接建模功能来支持无历史 CAD 应用程序,还是实现基于历史的特征树,3D ACIS Modeler 的广泛解决方案都在各行各业中获得信赖。

修改 3D 模型

修改 3D 模型的能力非常重要,因为模型是来自许多不同来源,并具有不同意图。 3D ACIS Modeler 通过其广泛的稳健操作集,如布尔、混合、直接编辑、加厚、偏移等,支持应用程序定制自己的数据准备。


3D ACIS Modeler 为特征建模应用程序提供完整的支持,可以通过添加注释在几何操作中进行拓扑跟踪。 此外,这类应用程序可以利用属性机制将自定义数据附加到拓扑对象,在建模操作中对它们进行跟踪。

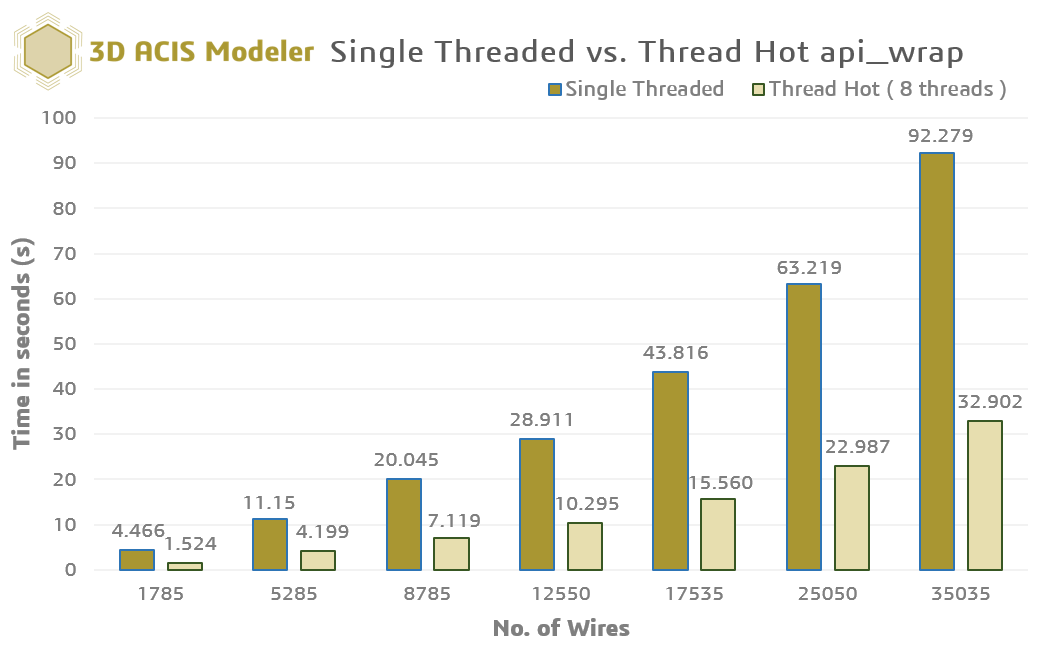

3D ACIS Modeler 保持着最高性能和内存管理标准,并在其数十年的行业使用基础上不断进行改进。 线程安全,支持多线程 API。

查询 3D 模型

对不需要创建或修改模型的只读工作流,使用模型拓扑、几何结构和元数据,例如 xR 应用程序的可视化。


通过增加更多功能为您的客户提供增值。 Spatial 提供并维护桥接工具或即开即用的集成代码,使得 3D ACIS Modeler 开发人员能通过 3D Precise Mesh、CGM HLR、CDS 之类的加载项来拓展他们的应用程序。 这些功能可以轻松集成,从而帮助开发人员专注于具有竞争力的优势。


Case Study - FVA GmbH

FVA GmbH Success Story

FVA's solutions serve the entire driveline industry (automotive, industrial, aviation, marine, rail, and wind) with software capable of highly sophisticated and detailed simulation of the system behavior of virtual gearboxes and detailed analysis of individual driveline/gearbox components. Whether used in the early stages of design or to verify existing gearboxes, FVA's software package enables customers to visualize complex gearboxes in 3D while modeling system behavior, such as deformations and kinematics.

Continue to Case Study

Case Study - Borm

Borm Infomatik AG Success Story

Cut the cost of development; Shortened the time for delivering new features; Provided leading edge modeling technology; Eased upgrade process when new version arrives on market

Download the Borm-Infomatik Case Study

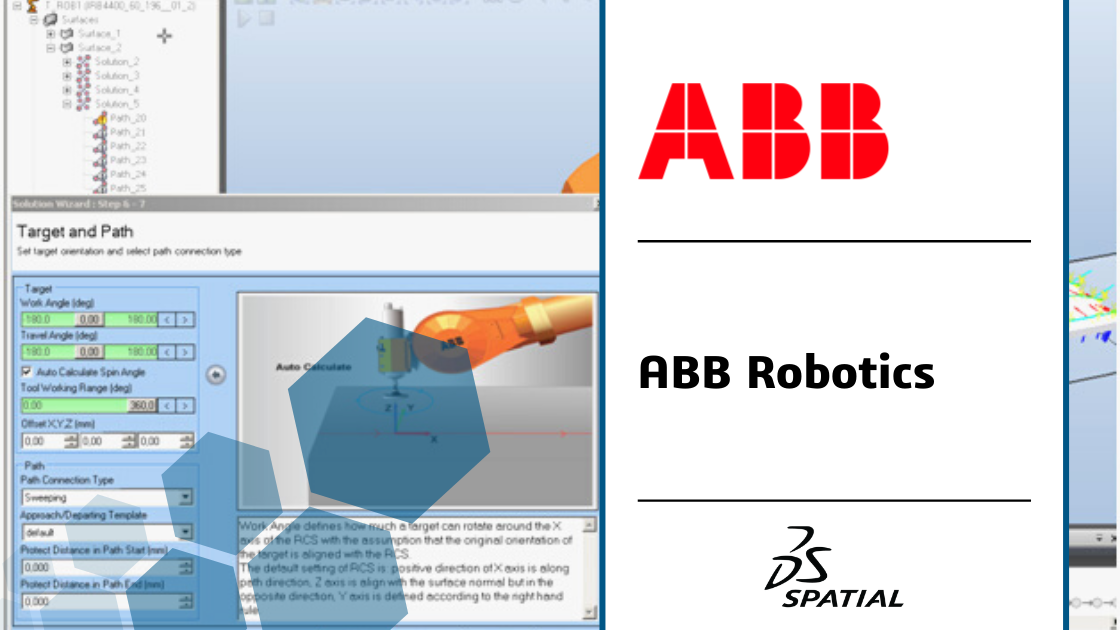

Case Study - ABB

ABB Success Story

ABB’s Robotics Division markets RobotStudio simulation and offline programming software, allowing robot programming to be done on a PC without shutting down production and increasing overall productivity.

Download the ABB Case Study

Case Study - BuildIt

BuildIT Success Story

BuildIT Software & Solutions is a leading developer of 3D model-based inspection software. BuildIT needed a geometry kernel that would deliver higher levels of performance and provide advanced functionality for handling geometrical data.

Download the BuildIT Case Study

Case Study - Dukin

Dukin Success Story

Development time reduced by more than 30%: Development costs decreased by 50%: Excellent help from the support team at Spatial.

Download the Dukin Case Study


5 Essential Functions of ACIS

5 Essential Functions of 3D ACIS Modeler

Dive into the 5 essential functions of 3D ACIS Modeler, including creating, modifying, querying, managing, verifying, and healing.

eBook: 5 Essential Functions of 3D ACIS Modeler

How to Successfully Develop, Deploy 3D Applications

How to Successfully Develop, Deploy, and Support 3D Applications

Successfully developing, deploying, and supporting 3D applications is a substantial challenge, requiring significant investment, precise execution, and focus on innovation and differentiation. Explore this eBook to discover the top 10 reasons to embrace Spatial's 3D SDK for improving 3D application development

Free eBook - How to Successfully Develop, Deploy & Support 3D Applications
Webinar - ACIS

Leverage 2020 1.0.1 to enhance the experience of your ACIS applications

Learn about the latest release highlights and how ACIS customers have leveraged Spatial’s Customer Success Team for their expertise
Speaker: Shweta Singh, Technical Marketing at Spatial


Webinar - Spatial is your Solution Advisor

Spatial is Your Solution Advisor

Learn how Spatial’s Professional Services can help you build the perfect 3D application for your needs.
Speaker: Lance Bennett, Senior Customer Success Manager


ACIS On Demand Webinar

How to Become More Competitive with Spatial's 3D Software Development Toolkits

Demonstrated in this Webinar are new features and functionality as well as how Spatial’s latest enhancements to 3DS ACIS Modeler and 3D InterOp will enable expansion into new markets with increasingly innovative solutions.

Become more competitive with Spatial's 3D Software Development Toolkits



Want to take your ACIS application further?

Contact us about the Spatial Assessment Program.
Contact Us
