What is a geometric modeling kernel?

A geometric modeling kernel is the core software component that creates, represents, modifies, and validates 2D or 3D geometry in CAD, CAE, CAM, and related engineering applications. It provides the mathematical and topological operations needed to build solid models, surfaces, curves, features, and assemblies.

A geometric modeling kernel, sometimes called a solid modeling kernel, is the computational engine behind a CAD or engineering software application. While the user interacts with commands such as extrude, fillet, shell, trim, or Boolean subtract, the kernel performs the underlying geometric calculations required to produce a valid model.

In a CAD system, the visual model displayed on screen is not just a rendered shape. It is usually backed by a precise mathematical representation of curves, surfaces, edges, faces, vertices, and their relationships. The kernel manages this representation and ensures that operations preserve geometric consistency.

How does a geometric modeling kernel work?

A modeling kernel typically handles both geometry and topology.

For example, when a user creates a hole through a mechanical part, the kernel must calculate the intersection between the cutting cylinder and the existing body, remove the appropriate material, rebuild the surrounding faces and edges, and verify that the resulting solid remains valid.

Common kernel operations include:

• Creating solids, surfaces, curves, and wireframes
• Performing Boolean operations such as union, subtract, and intersect
• Generating fillets, chamfers, drafts, offsets, and shells
• Trimming and extending surfaces
• Healing or repairing geometric inconsistencies
• Managing tolerances and precision
• Supporting model evaluation, such as point containment or surface curvature
• Maintaining B-Rep topology and geometric validity

Types of modeling kernels

Different kernels may specialize in different modeling approaches.

Why kernels produce different results

Not all geometric modeling kernels behave identically. Two kernels may interpret the same modeling command differently because they use different algorithms, tolerance strategies, data structures, or modeling assumptions.

A fillet operation may succeed in one kernel and fail in another if the surrounding geometry contains narrow faces, small gaps, high curvature, or conflicting topology. This is one reason why interoperability between CAD systems can be technically difficult.

What is a geometric modeling kernel used for? Applications and industry use cases

Geometric modeling kernels are used wherever precise digital geometry must be created, edited, analyzed, or exchanged.

Challenges or common pitfalls

One common challenge is geometric tolerance management. Engineering models are rarely perfect at the computational level, and small gaps, overlaps, or misaligned edges can cause downstream failures.

Another issue is operation failure on complex geometry. Commands such as fillet, shell, offset, or Boolean subtract may fail when the model contains narrow faces, self-intersections, high curvature, or ambiguous topology.

CAD interoperability can also be difficult. When a model is transferred from one system to another, the receiving application may rely on a different kernel with different tolerance rules and modeling assumptions.

A further pitfall is confusing visual representation with precise geometry. A rendered model may look correct on screen while still containing invalid topology, missing faces, non-manifold edges, or other issues that affect manufacturing, simulation, or data exchange.

Finally, choosing a kernel only by feature list can be misleading. Developers should also consider:

• Robustness on real production data
• Performance
• Interoperability with other systems and formats
• Supported modeling workflows
• Precision requirements
• Documentation
• Integration complexity

How Spatial Helps

Spatial builds SDKs that developers use to add geometric modeling, CAD interoperability, and meshing to their own engineering applications.

The 3D ACIS Modeler and CGM Modeler are Spatial's two geometric modeling kernels. Both let your application create, modify, query, and visualize precise B-Rep models — solids, sheet bodies, and wire bodies — and both run the underlying geometry and topology operations behind commands like extrude, fillet, shell, and Boolean subtract. ACIS has led the 3D geometric modeling kernel market for over 30 years and is used by more than 400 companies worldwide. CGM served as the modeling kernel for Dassault Systèmes' CATIA V5 and V6 products, and it uses tolerant modeling — designed in from the start — to maintain geometric and topological precision on both natively built and imported models. Spatial also offers the Constraint Design Solver for parametric part and assembly design.

3D InterOp handles CAD data exchange. It reads and translates exact B-Rep geometry, visualization data, and metadata from all major neutral and native CAD formats, and it generates native geometry for ACIS, CGM, and Parasolid. During import, 3D InterOp automatically heals bad input data — recognizing and repairing geometry errors, stitching gaps, and fixing invalid topology — so that downstream operations succeed. It works directly with the modeling kernel rather than through a neutral format, and it uses libraries supplied by Dassault Systèmes to read and write CATIA data. This matters whenever geometry built in one system has to be reused in another that relies on a different kernel and different tolerance rules. More than 300 companies have used it over 20 years.

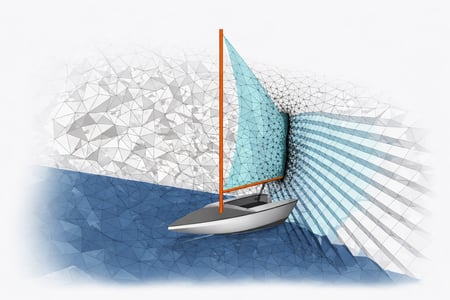

Spatial's kernels also connect directly to meshing and data-preparation tools:
