Polyhedral Modeling for ACIS-Based Applications

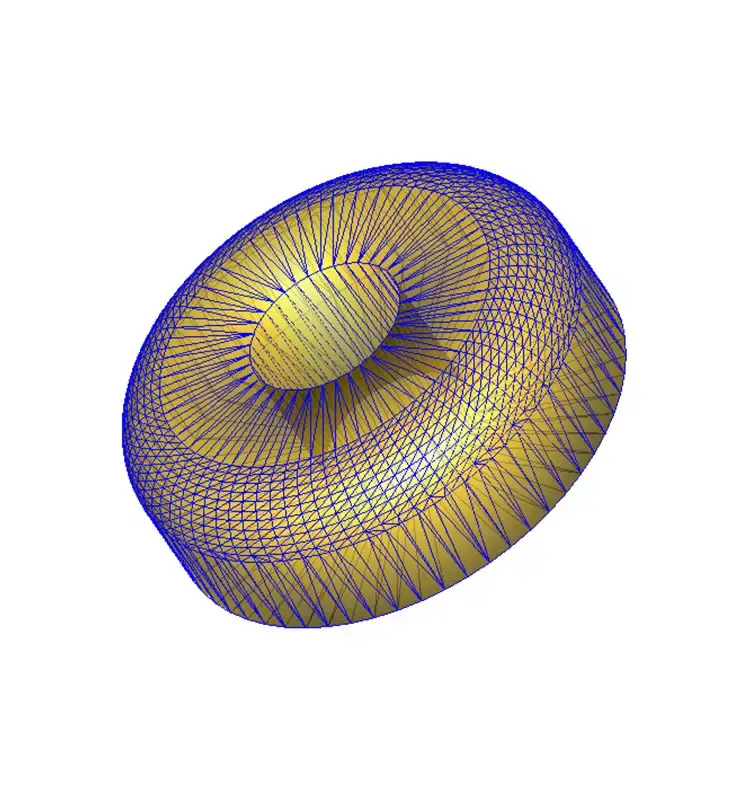

Convert ACIS B-Rep bodies into meshes or import meshes directly into 3D ACIS Modeler for advanced model manipulation and preparation. ACIS Polyhedra provides revolutionary additions to precise B-Rep modeling that enables your application to add value and solve new problems, allowing you to offer new products and solutions to your customers.

Request Evaluation

Expand the Scope of Your Application With Polyhedral Modeling

Designed for ACIS-based applications, expand your application’s reach and functionality with ACIS Polyhedra. With our hybrid modeling solution, convert ACIS B-Rep bodies into meshes or directly import meshes for advanced manipulation and preparation.

By integrating polyhedral modeling, your B-Rep application can cater to industries like additive manufacturing, robotics, XR and dental, enhancing its scope and versatility. ACIS Polyhedra provides robust, high-quality algorithms for large data sets, reducing development time and costs with efficient APIs. Unlock new possibilities and deliver cutting-edge solutions with ACIS Polyhedra.

Why Choose ACIS Polyhedra?

Tomorrow's Innovation, Today

ACIS Polyhedra provides groundbreaking additions to precise B-Rep modeling that enables your application to add value, solve new problems, and offer new products and solutions to your customers.

Optimal Quality

Algorithms in ACIS Polyhedra are designed to offer robust and performant modeling operations even on the largest data sets.

Reduce Development Time

Leverage the APIs in ACIS Polyhedra to quickly add new workflows to your application, saving time and development costs.

Unlock Various Features for
Advanced Model Manipulation

Import

Spatial's polyhedral solution supports many of your data sources, including medical data, terrain data, scanned objects, raw mesh data, precise models and dozens of 3D modeling formats when combined with 3D InterOp.

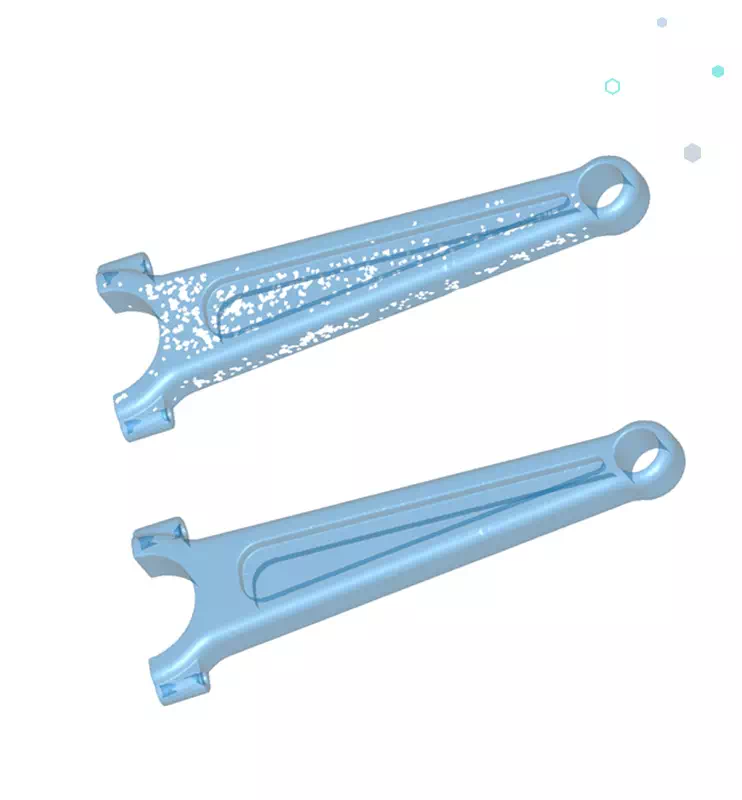

Healing

ACIS Polyhedra automatically repairs models where other solutions fail. Combined with evaluation adjustment and repair tools, you can produce models that meet manufacturability specifications.

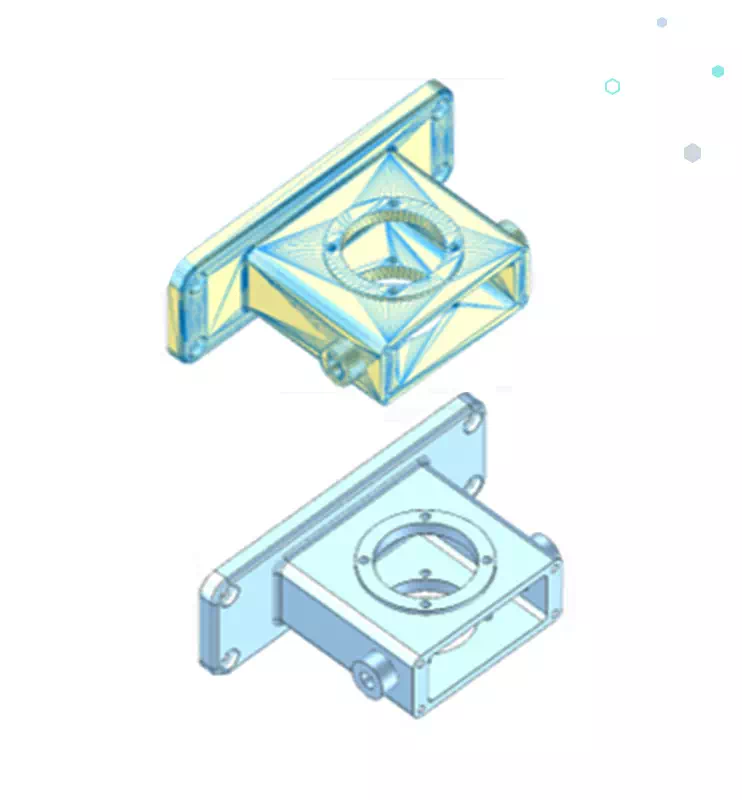

Model Resurfacing

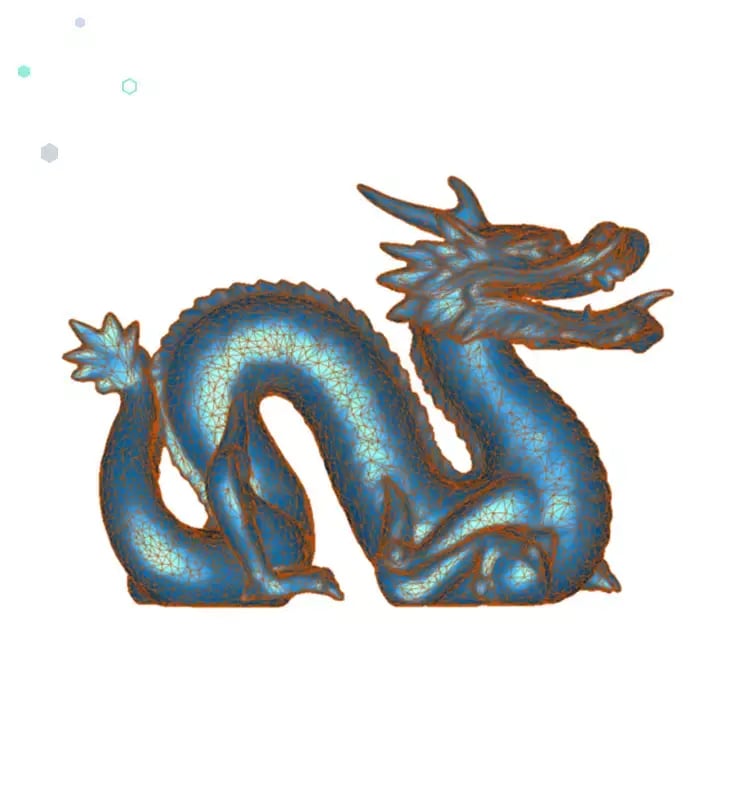

Sometimes, the polyhedral model’s quality is so poor it needs to be resurfaced entirely. ACIS Polyhedra’s powerful resurfacing algorithms can help you convert low-quality scanned meshes into usable ones.

Polyhedral Operators

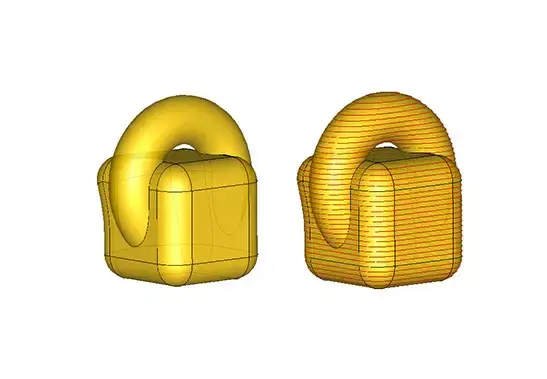

ACIS Polyhedra offers many APIs to enable building data preparation workflows such as Booleans, slicing, offset and decimation.

Analysis

ACIS Polyhedra supports many topological queries and calculations on polyhedral models, such as clash detection, wall thickness analysis, mass properties, distance calculations, hard-edge detection and canonic surface fitting.

Uniform Interface

ACIS Polyhedra and 3D ACIS Modeler share common polymorphic APIs for many operations, making implementation easy while using specialized algorithms optimized for input data.

Get Started With Spatial

Do we have the technology to take your 3D application workflows to the next level? Find out by speaking with a Spatial expert.

Request an Evaluation

3D ACIS Modeler

This long-standing platform is the leading 3D geometric modeling kernel. Offering enhancements for millions of users, ACIS Modeler has facilitated decades of industrialization.

Discover more
