概要

Virtual Motion 社は、機械システムダイナミクスのモデリングと解析を行う CAE ソフトウェアのリーディングプロバイダです。民間企業である Virtual Motion 社は、収益を上げるために新製品を迅速に市場に投入する必要がありました。しかし、同社には独自の 3D ジオメトリカーネルを開発する時間とリソースがありませんでした。

Virtual Motion社 は、スペイシャル3D ACIS Modeler を統合し、AGM と HOOPS を活用して DAFUL ソフトウェアの開発を加速しました。その結果、開発時間が 50% 短縮され、Virtual Motion社 は強力な 3D モデリング API を通じて競争上の優位性を獲得しました。

When I outsource software to be part of my product, the company’s reputation, reliability and support infrastructure are very important to me.
Prof. Daesung Bae Director of Research and Development
小さなヘクス

会社概要

2006年に設立されたVirtual Motion社は、機械システムダイナミクスとFEA解析に使用されるCAEソフトウェアソリューション、DAFUL(韓国語で「マルチフィジックス」の意味)の開発と販売を行っています。DAFULは、大きな並進・回転変位(マルチボディダイナミクス)を受ける可能性のある剛体および弾性体システムの動的解析を行います。

DAFULは現在、自動車(現代自動車やその子会社、部品サプライヤーなど)、電子機器(LGやサムスンなど)、重工業(キャタピラーなど)など、韓国のさまざまな市場で販売されています。Virtual Motion社は、ローカライズ版や数値流体力学、制御、最適化を含む新しいソフトウェア・アプリケーションで、新しい地理的市場に拡大する計画を持っています。

Virtual Motion社 の顧客は DAFUL を使用して、機械システムの設計にかかるコストと時間を大幅に削減しています。部品やコンポーネントの設計者は、このソフトウェアを使用して仮想プロトタイプ上で解析を行い、設計が機能要件や安全要件を満たしていることを確認します。

DAFULによって、設計者はコストのかかる試作品を何度も作る必要無く、希望の設計を実現することが可能です。

2020-12-アンシス-アカデミック-アンシス-学生製品
小さなヘクス

課題

適切なサードパーティの3Dモデリングカーネルを求めて

Virtual Motion社 にとって最大の課題は、限られた人材と資金でソフトウェアを開発することでした。さらに、収益を上げるためには、できるだけ早くソフトウェアを市場に投入する必要がありました。市場投入までの時間が限られていたため、同社はソフトウェアの 3D モデリングカーネルにサードパーティのソリューションを採用することにしました。

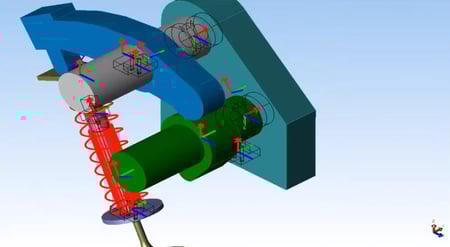

キャプチャデクラン 2024-09-12 170302
バーチャルモーション2
バーチャルモーション3

解決策

3D ACIS Modeler、AGM、HOOPSがそれぞれの得意分野を発揮できるようにする

Virtual Motion社 の研究開発ディレクターである Daesung Bae 教授は、以前の会社で市販のグラフィックカーネルを使用した経験があり、UGS社の Parasolid(現在はシーメンス社)も検討しましたが、最終的にスペイシャルの ACIS技術、Applications Graphics Manager (AGM) および HOOPS を選択しました。

スペイシャルのコンポーネントを選択した理由は、いくつかの重要な要素に基づいています:

  1. 開発の容易さとグラフィックス性能およびライブラリの信頼性 - Virtual Motion の開発者は、ACIS カーネルが非常に優れたオブジェクト指向クラスライブラリを備えており、特に他のオプションと比較した場合、プログラミングが非常に容易であることに気付きました。

  2. 柔軟な価格設定モデル - スペイシャルの価格設定モデルは、Virtual Motion社 のソフトウェア価格設定およびパッケージングモデルにマッチしています。

  3. 他のオブジェクト指向ソフトウェアとの互換性とトランスレータの使いやすさ。

  4. スペイシャルの AGM ライブラリにより、HOOPS と ACIS の両方のアプリケーション開発が加速された(Parasolid にはこの機能がなかった)。

さらに、Bae 教授は他の選択肢を検討する中で、スペイシャルの地域マネージャーの対応とプロ意識に非常に感銘を受けたという。「自分の製品の一部としてソフトウェアを外注する場合、その会社の評判、信頼性、サポートインフラは非常に重要です。

とペ教授は言う。

バエ教授は当初から、Virtual Motion社 の開発者を立ち上げ、稼動させるための スペイシャルの実践的なアプローチに感銘を受けました。スペイシャルは技術エキスパートを同社に派遣し、1 週間のトレーニングを行いました。

と AGM を使って、バーチャル・モーション・ソフトウェアをどのように最適化できるかについて、深く話し合うことができました。

私たちはまず、グラフィックプロパティを変更するための情報をジオメトリーカーネルに送信するインターフェースを作成することから始めました。これにより、Virtual Motion社 の開発者は、同じ開発コードを複数の場所で繰り返す必要がなくなりました。こうしてAGMは開発期間を大幅に短縮し、その結果、市場投入までの時間を短縮しました。

また、Virtual Motion社 は、グラフィカルシミュレーションプロセスを内蔵した スペイシャルの HOOPS 3D Application Framework を選択することで、開発工数を最小限に抑えました。「私たちのシステムには、機械システムのコンポーネントを構築し、3Dで表示するためのGUIがあります。

とBae教授。「HOOPSは、私たちのコンポーネントをスペイシャルコンポーネントと接続し、メニューのレイアウトなどのグラフィカルビューを管理するための非常に優れたインターフェースを持っています。

Virtual Motion社の顧客はDAFULで3Dジオメトリを構築することもありますが、約80%は他のCADシステムからモデルをインポートしています。Virtual Motion社は、STEPとParasolidの高度な3Dデータ相互運用機能を簡単に統合するため、データのインポートを容易にする3D InterOpトランスレータの使用を計画しています。

CHAIN_DRIVE_BEHAVIOR_640x300
d4d69d84-2017-03-22-thumb-4t-figuras-wb
キャプチャデクラン 2024-09-12 170623

結果

開発期間の大幅な短縮を実現
スペイシャルを使用することで、Virtual Motion社 は全体の開発時間を 50% 短縮することができました。「スペイシャルを使用することで、プログラミングの労力を最小限に抑えることができ、ソフトウェアの自社開発をスピードアップすることができました。「加えて、グラフィックスとパフォーマンスの質も非常に優れています。
Bae教授は、スペイシャルの技術とサービスに非常に満足しており、スペイシャルの信頼性とスペイシャルのコンポーネントとDAFULのコンポーネントとの統合の容易さから、他社にスペイシャルを強く推奨しています。

Capture décran 2024-09-12 170602

重要な洞察

スペイシャルのSDKが業界をリードしているのには理由があります
グループ111

解決策

スペイシャルの SDK は、ソフトウェア開発を加速するために世界中の企業で活用されています。
Virtual Motion社 は、3D ACIS Modeler とそれを補完するソリューションのパワーを実感し、
その結果、重要な競争上の優位性を獲得しました。

事例の全文をダウンロード

Virtual Motion社がACIS Modelerを使用することでどのような利益を得たか、事例の全文をダウンロードして詳細をご確認ください。
