摘要

三丰公司是一家世界知名的计量公司,需要三维建模和翻译能力,以提高其客户测量自由曲面和要求精确三维模型的竞争力。为了提高竞争力,他们认识到需要卓越的三维建模和翻译能力。

三丰公司发现 Spatial 与其几何内核 3D ACIS Modeler 的 CAD 集成、图形报告和显示效果最佳。三丰公司对将 Spatial 技术集成到其坐标测量机软件中的效果非常满意,并推荐在公司其他部门使用。

Spatial is essential to our software and have continuously met our expectations. Without it we couldn’t be competitive in the CMM market.
Dr. Ing. Dieter Loebnitz Director of Software Development
小六边形

公司

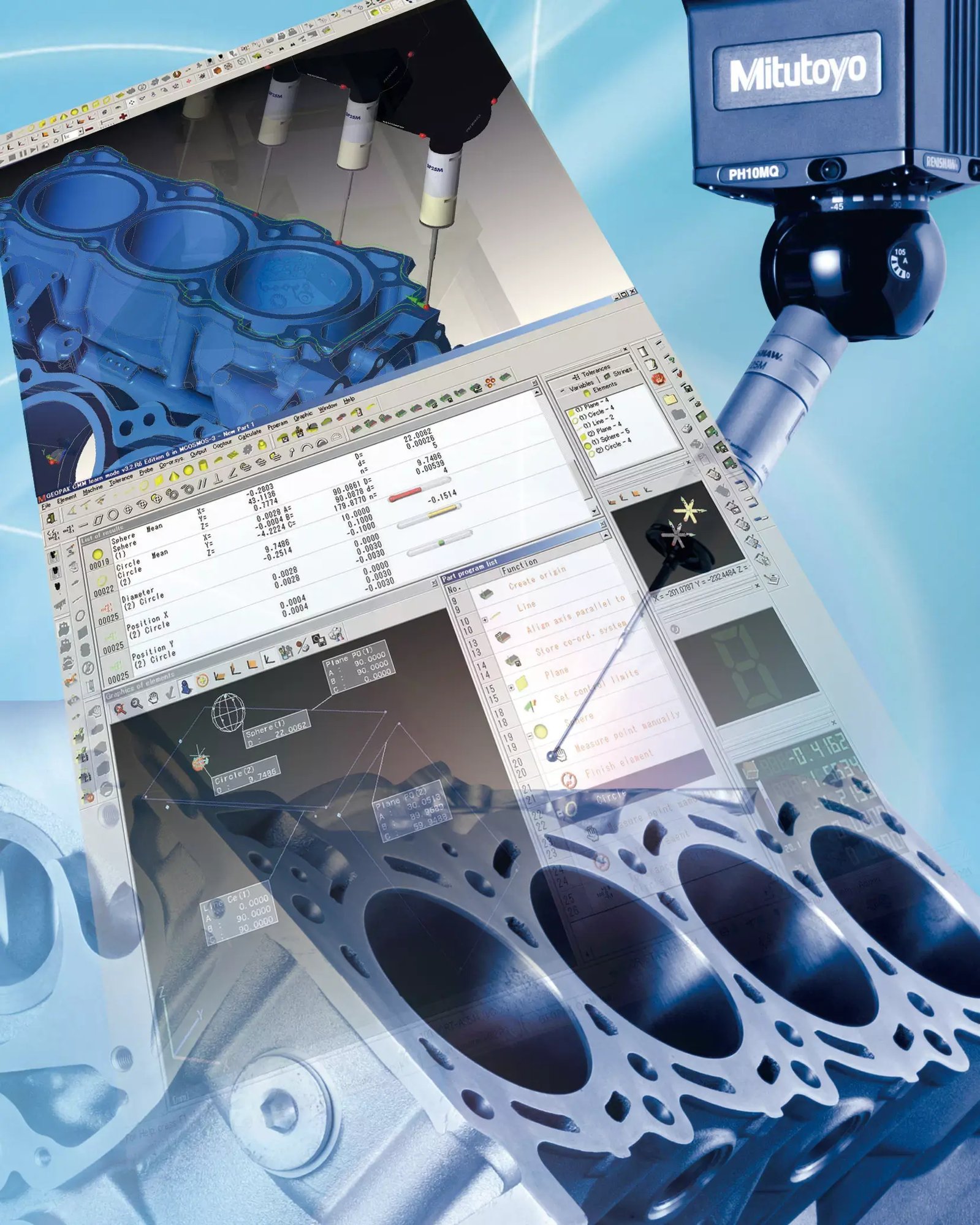

三丰公司已有 82 年的历史,现已成为世界领先的计量公司,拥有全套尺寸测量工具、仪器和系统。其 MCOSMOS® 坐标测量机 (CMM) 软件是喷气发动机市场的行业标准。MCOSMOS 将高度直观、基于图标的编程与导入本地 CAD 模型的能力相结合,即使是新手用户也能轻松导入零件和夹具模型,并将其在线或离线置于坐标测量机中。

MCOSMOS 是一款应用广泛的多功能软件。三丰公司的两个最大客户--劳斯莱斯和叶片技术有限公司,以及通用电气、普惠和汉莎航空--使用坐标测量机软件来检查涡轮叶片等高精度加工件是否符合要求。

涡轮叶片等高精度机加工部件。在另一端,Playmobil 和乐高等公司的艺术家们使用 MCOSMOS 通过数字化设计模型来制造玩具部件,并通过 MCOSMOS 制造出玩具部件。

使用 MCOSMOS 对设计模型进行数字化,然后根据结果制作塑料模型。其他应用还包括汽车车身部件和海洋工程。

MCOSMOS_image_highres
小六边形

挑战

自由曲面的精确 3D 模型

三丰公司的客户需要对自由曲面进行评估,因此公司首先尝试在内部开发 IGES 转换功能,但效果并不理想。公司意识到,要提高竞争力,就必须具备卓越的三维建模和翻译能力。三丰公司的开发人员擅长创建管理零件程序的软件,并根据 CAD 模型评估规格书中的坐标数据,但该公司缺乏内部开发几何建模引擎和 CAD 数据转换器的专业知识。

六角形-mutoyo2
六角形-mutoyo1
六角形-mutoyo3

解决方案

高品质 3D 解决方案套件

早在 1994 年设计 MCOSMOS 功能之初,三丰产品经理就意识到他们缺乏经验和人力来开发底层建模引擎,以支持客户的 CAD 建模数据。他们的客户正在测量自由形状的表面,如涡轮叶片,而这些表面并没有任何基本的几何描述。起初,该公司在内部进行转换,并尝试用自己的工具显示测量结果,但事实证明效果并不理想。

三丰公司发现 Spatial 具有最佳的 CAD 集成、图形报告和显示功能。"三丰公司发现 Spatial 具有最佳的 CAD 集成、图形报告和显示功能。Dieter Loebnitz 博士说道。

MCOSMOS 经过持续不断的开发,每隔一两年就会发布新版本,增加功能、不同的探测策略和测量特性,所有这些都是由客户的意见决定的。十多名开发人员(在德国和洛杉矶)直接负责该程序的 3D ACIS Modeler 相关工作。

借助 Spatial 全面的 3D InterOp 软件开发工具包,MCOSMOS 可接受 IGES、VDA-FS 和 STEP CAD 格式,以及 Spatial 的 3D ACIS Modeler 和 西门子的 Parasolid。HOOPS Visualize 用于该软件的所有图形报告,如彩色阴影服务,以描述与理想模型的偏差。

易于使用-1200x800
Mitutoyo-America-Corporation-Introduces-MCOSMOS-Version-5.0
三丰

结果

Spatial SDK 的广泛应用

多年来,Loebnitz 发现将 Spatial 的技术融入 MCOSMOS 有很多好处,包括为其坐标测量机的测量序列编程更加简便。此外,HOOPS 还为三丰的用户提供了优雅的可视化测量数据和图形报告。

Spatial 技术的哪个方面对 MCOSMOS 的成功最为关键?Loebnitz指出了3D InterOp转换器的效率,随着时间的推移,转换器在显示时间方面的速度有了很大提高,这对于当今以千兆字节而不是兆字节为单位的模型来说尤为重要。过去需要几个小时才能读取的大型模型,现在只需要几分钟。

未来的功能将包括添加产品制造信息,例如从 CAD 模型到坐标测量机的公差信息,没有 Spatial 就不可能实现这些功能。Loebnitz 认为,与 Spatial 的紧密合作有助于实现这一目标。"Loebnitz 指出:"这是一项新的发展,对我们来说具有巨大的未来潜力。

三丰公司对将 Spatial 技术集成到其坐标测量机软件中的效果非常满意,并推荐在公司其他部门使用该技术。例如,在机器配置中,Spatial 可以提供一个完整的离线系统,用户可以模拟测量过程。这大大节约了成本,因为用户可以在实际零件制造之前使用 CAD 模型进行测量。

三丰公司使用 Spatial 的 3D ACIS Modeler 和 HOOPS Visualize 进行离线编程。为了进行完整的模拟,操作员需要对加工的其余部分进行可视化,以查看机床如何移动,例如在何处更换刀具。

如果没有 Spatial 的技术,要显示这一顺序,用户就必须自己构建机床。三丰公司的 Machine Builder(坐标测量机配置程序)允许用户将自己的机床作为模型,并将零件的 CAD 模型放在上面进行编程和模拟,从而节省了时间和金钱。
