製造ソフトウェア・プロバイダー向け3D SDK

製造アプリケーションの自動化をお考えですか?以前の設計編集をシームレスかつ自動的に1つの最終モデルにマージすることは有益でしょうか?3Dモデリング、CAD変換、ビジュアライゼーション用のスペイシャルのSoftware Development Kits (SDK)を組み込むことで、製造プロセスを合理化し、競争力の高い統合ソリューションを提供することができます。

background-glow
あなたの課題

製造業向けソフトウェア開発における主な課題
製造業向けソフトウェア開発

Group (50)
データ
統合
CAD、CAM、CAEアプリケーション間のスムーズなデータ交換を実現します。

Group (16)
プロセス
最適化
ウォータージェット切断やCNCフライス加工などの複雑な工程を合理化します。

Group (54)-1
より速く
開発
堅牢な3DモデリングSDKを活用することで、市場投入までの時間を短縮します。

Group (73)
未完成
CADアップデート

不足している機能を処理し、シームレスなCADバージョン更新を可能にするツールを構築。

AdobeStock_399517769
AdobeStock_404220245
AdobeStock_53197663

お客様の課題への対応
SDKで

高品質CAD変換のためのデータ相互運用性

  • 3D InterOpで高品質のCADデータ変換にアクセスし、設計意図とPMIを保持しながら、製品構造、グラフィック、ジオメトリを正確にインポートできます。
  • スペイシャルのData Prepで3Dデータを最適化し、高度なアルゴリズムを使用して、フィルタリングと圧縮によりモデルの複雑さとサイズを削減します。

機械加工のための3Dモデリング機能

  • 3D ACIS Modelerは、35年以上にわたって何百万人ものユーザーに使用されてきたレガシーモデラーです。スペイシャルの次世代モデラーである CGM Modeler は、高度なフィーチャー認識とデフィーチャリングを備えており、機械加工操作のためのいくつかの製造機能をサポートしています。これらのモデリング・カーネル内の堅牢な機能により、開発者は最適な精度、柔軟性、使いやすさを提供するソリューションを統合ソリューションとして提供することができます。

実証済みの3Dアプリケーション開発フレームワーク

  • AGMは、多用途で包括的な3Dアプリケーション開発フレームワークです。堅牢な3Dアプリケーションを作成するためのツールを提供し、他のすべてのスペイシャルの SDKとシームレスに統合し、製造プロセスの正確で信頼性の高いシミュレーションを提供する高速コリジョンチェックを提供します。

効率的なコラボレーション

  • トップフロアと現場との効果的な統合とコミュニケーションが不可欠である。スペイシャルのソリューションは、このギャップを埋める鍵です。CGM Modelerと3D InterOpは、様々なシステムからアプリケーションへのCADモデルのインポートを可能にすることで、CAMエンジニアをサポートします。これらのツールは、迅速かつ正確な形状編集とツールパス計算の生成により、モデルの解析と最適化を促進します。
仕組み

特定のワークフロー
製造・加工ソフトウェア

板金メーカーの一般的な作業フローは、CGM Modelerと3D InterOpを使用する場合、次のようになります。
部品をインポートし、自動的に曲げを検出し、曲げを展開し、穴と切り欠きを除去し、板金ブランクのサイズを決定します。
https://10956.fs1.hubspotusercontent-na1.net/hubfs/10956/workflowmanuf.webp

1.板金部品のインポート

  • 部品とアセンブリのインポート
  • 選択的B-Repインポート
  • セマンティックおよびグラフィカルPMI
  • CADとの関連性

https://10956.fs1.hubspotusercontent-na1.net/hubfs/10956/workflowmanuf2.webp

2.曲げを自動的に検出

  • 円筒曲げの検出
  • オプションで曲げ検出プロセスを制御
  • ベンドオブジェクトが幾何学的なプロパティで作成されます。

https://10956.fs1.hubspotusercontent-na1.net/hubfs/10956/workflowmanuf3.webp

3.曲げを展開する

  • オプションのパラメータは、アンベンドプロセスを制御します。

https://10956.fs1.hubspotusercontent-na1.net/hubfs/10956/workflowmanuf4.webp

4.穴と切り抜き部分を取り除く

  • 穴とカットアウトは、CGM モデラーのフィーチャー検出機能によって検出されます。

https://10956.fs1.hubspotusercontent-na1.net/hubfs/10956/_0004_Calque-0-1.jpg

5.板金ブランクのサイズの決定

  • バウンディングボックスは、展開され、機能が解除されたハウジングの外周から作成される。

https://10956.fs1.hubspotusercontent-na1.net/hubfs/10956/workflowmanuf5.webp

6.オリエンテーションとネスティング

  • 自動裁断のために、他の展開されたデザインとネストされる。

アプリケーションのアップグレード

製造・加工ワークフローに適した機能
ワークフロー

スペイシャルのソリューションには、製造・加工ソフトウェア企業特有のニーズをターゲットにした機能が組み込まれています。
一般的なサードパーティ製品を超えるカスタムソリューションは、より高い柔軟性を提供します、
製品の方向性をよりコントロールし、使いやすさなどの主要な差別化要因に重点を置いています、
操作の合理化、コスト削減など、主要な差別化要因に重点を置いています。
大規模CADアセンブリのインポート
高度な特徴認識
高品質CADデータ変換
セマンティックPMI抽出と自動化
高度なネスティング機能
フィーチャーマヌフ4

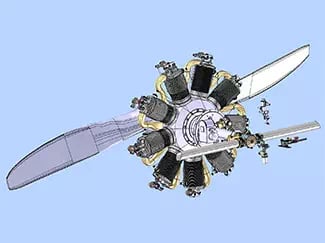

大規模CADアセンブリのインポート

大規模アセンブリのシームレスな統合

3D InterOpは、大規模なCADアセンブリのインポートを高度にサポートし、複雑な設計をスムーズかつ効率的に処理します。この機能は、忠実性とパフォーマンスを維持するために非常に重要であり、ユーザーはスピードや精度を犠牲にすることなく、詳細なアセンブリを扱うことができます。

フィーチャーマヌフ2

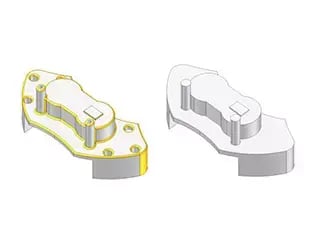

高度な特徴認識

製造のための自動フィーチャー識別

CGM Modelerは最先端のフィーチャー認識を提供し、フィレット、穴、ポケット、パッドなどの製造フィーチャーを識別します。これにより、CAD/CAMアプリケーションは設計変更を自動化し、製造プロセスの効率と精度に焦点を当てることができます。

フィーチャーマヌフ3

高品質CADデータ変換

完璧なフォーマット相互運用性

3D InterOpは、最高品質のCADデータ変換を提供し、異なるフォーマット間の既存モデルのシームレスな入力と再利用を保証します。この機能は、多様な製造環境におけるCADデータの整合性と使いやすさをサポートします。

フィーチャーマヌフ5

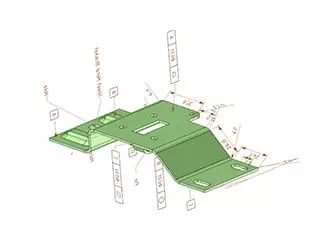

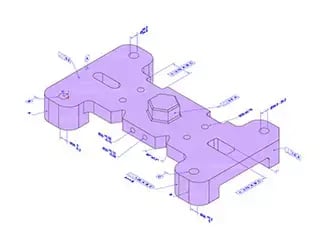

セマンティックPMI抽出と自動化

PMIインサイトによる製造自動化

3D InterOpは、シンボリックスレッドを含むアノテーションから意味情報を抽出することで、製造自動化を強化します。これにより、CAMエンジニアが手動で入力することなく、パーツを自動的に製造できるようになり、製造プロセスが合理化されます。

フィーチャーマヌフ6 フィーチャーマヌフ

高度なネスティング機能

製造工程の最適化

洗練されたネスティング技術を導入し、材料上の部品の配置を最適化することで、製造工程における無駄を大幅に削減し、効率を高めます。

AdobeStock_327876982
AdobeStock_201151642
AdobeStock_296563419
