EDA

Spatial solutions for the EDA industry help tool providers innovate to rapidly address customer requirements, accelerate their time-to–market (TTM), and optimize solutions within the current EDA physical design flows. Beyond traditional needs, wireless devices, advanced packaging and manufacturing variability are accelerating the need for EDA Tools that provide automated 3D analysis and visualization.

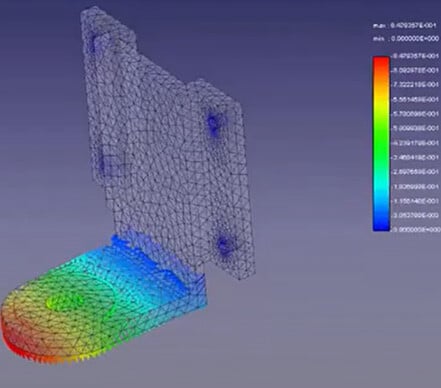

The Spatial solution of EDA Tools includes the EDA 3D Analysis Suite, and individual 3D components such as the 3D ACIS Modeler®. The Spatial solutions provide productivity advances to tool developers via a set of robust modeling APIs, including a unified, integrated package of modeling, visualization and meshing utilities. Applications benefiting from Spatial solutions include high frequency board and package signal integrity, embedded memory and passive component characterization, lithographic and CMP analysis, parasitic extraction, thermal and mechanical stress, and process modeling.

Spatial 3D products and services are used extensively in the EDA industry by commercial software providers such as Agilent, Ansoft, Zuken and Physware, as well as internal development organizations.

EDA Tools Provide Spatial Partners with:

  • Accelerate time-to-market thru rapid development, leveraging proven industry knowledge and solutions to gain first-to-market advantage
  • Expand innovation, increasing focus on your key differentiators
  • Reduce product costs by single-sourcing optimized, integrated 3D technology
  • Leverage 3D expertise thru Services and Support from a Spatial team committed to your success

EDA Tools Solution Overview:

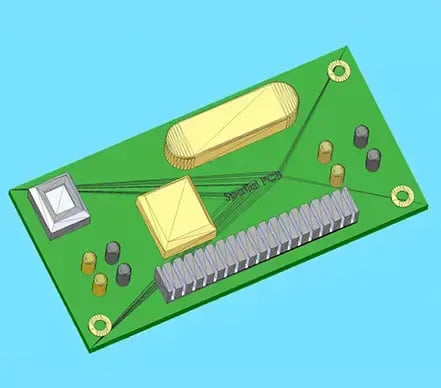

  • 2.5D and 3D solid model creation and simplification

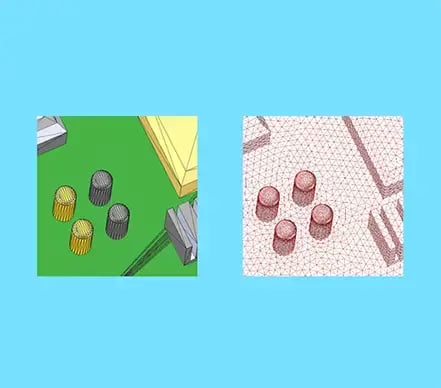

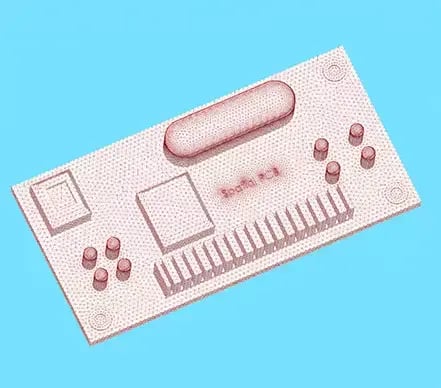

  • Surface and solid meshing routines with robust meshing controls
  • Platform-independent, high performance 3D display management
  • Unified API integrating modeling, visualization and meshing utilities
  • Learn More about EDA Tools included in Spatial's EDA 3D Analysis Suite
