概要

SAMIN Information System社は、アジアの造船業界向けに寸法精度管理と架設予測シミュレーションシステムを提供している。アジアの造船規格に適合した3D精度管理システムをいち早く市場に投入するため、サミンは製図モジュールを開発するための3Dモデリング技術を調達する必要があった。

3D ACIS Modeler、3D InterOp、HOOPS Visualizeを導入することで、サミンは、要求の厳しいアジアの造船市場の高い基準を満たす3D精度管理システムを初めて市場に投入した。

Spatial’s components enabled us to be first to market in the highly competitive Asian shipbuilding market. In turn we’ve enabled our customers to accelerate their product development plans and reduce costs at the same time. And also at the shipyards existing workers can provide high quality education to new workers with 3D models using our EcoSystem. It makes it easy to educate the new workers and they can understand fast what they are going to do. It’s really one of the necessary unctions to have to go to the next generation of shipbuilding.
Kim Deok Eun CEO and Director of Research Center
小さなヘクス

会社概要

韓国を拠点とするSAMIN Information System社は、韓国と中国の主要造船所に精度管理システムと架設シミュレーションシステムを提供している。同社はまた、日本、ベトナム、トルコ、インドでも製品を販売している。サミンの顧客にはアジア最大の造船会社が含まれる:韓国のSTX Shipbuilding & Marine Co.Ltd.、上海外高橋造船有限公司、中国の大連造船工業有限公司、ベトナムのHalong Shipyard Co.SAMINの製品ラインには、造船生産用のEcoMES、EcoBLOCK、EcoOTS、造船設計用のEcoVIEWER、EcoPINJIGがある。

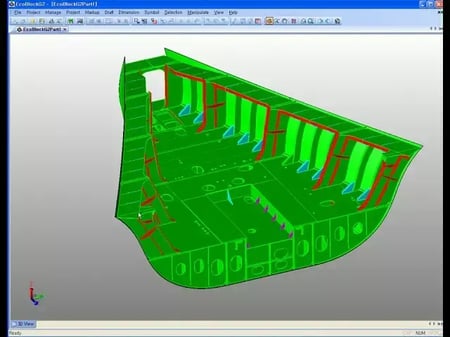

SAMIN社のEcoBLOCKは3Dベースのブロック精度管理システムで、AVEVA MARINE、Tribon、CADDS、ERSPD、ShipConstructor、AutoCADなどの造船3次元CADシステムとのインターフェースを持っています。EcoMESとTotal Stationを使用して、製造中のブロック(さまざまなサイズと形状の複数の鋼板と断面で構成)を正確に測定し、インポートした設計モデルと比較します。

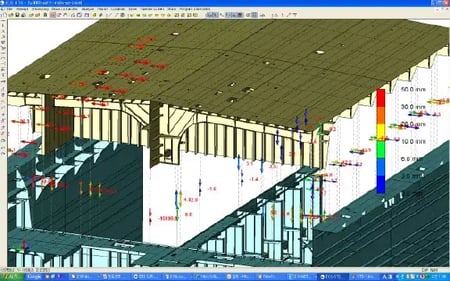

を正確に測定し、3D CADシステムで作成したインポート設計モデルと比較することで、誤差を簡単かつ正確に解析することができます。分析されたEcoBLOCKの出力を使って、切断やリアリングによって修正が必要なブロックの修正方法が導き出される。この出力は、船主の要求を正確に満たすブロックを製造するために使用されます。

キャプチャデクラン 2024-09-12 164759
小さなヘクス

課題

堅牢な3Dモデリングカーネルを求めて

アジアの造船規格に適合した3D精度管理システムをいち早く市場に投入するため、SAMIN社は、製図モジュールを開発し、Tribonから3D設計情報(ジオメトリ、アトリビュート)を抽出するための3Dモデリング技術を調達する必要があった。同社は、コンポーネントソリューションを探す前に、社内で開発作業を行っていた。

デフォルト

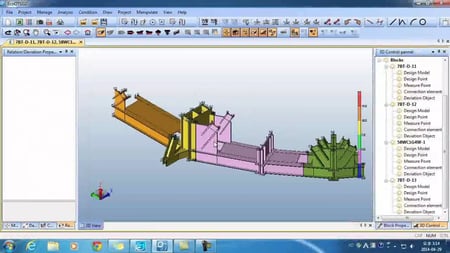

最大デフォルト (1)
サミン1

解決策

高性能3Dコンポーネント・スイート

サミンは、ACISによる3Dモデリングという本を通じてSpatial Corp.を知りました。Parasolidカーネルを検討した後、2007年初頭、SAMINはSpatialのACIS 3DモデリングカーネルとHOOPSアプリケーションフレームワークが、3D精度制御システムに最適なソリューションであると判断した。

ACISを選択した大きな要因の1つは、ACISベースの造船アプリケーションが普及していたことです。アジアの造船所では、大型で複雑な船舶やオフショア船を建造するために特別に開発された設計システムを使用している。これらの3D設計プログラムは通常、Spatial社のACISカーネルをベースにしており、SAMIN社がACISを購入する決定に大きな影響を与えた。ACISを使用することで、EcoBLOCKとEcoOTSはすべての主要な造船CADシステムと連動し、パイプ、パネル、構造物の名称や計測データなど、船舶部品の専門用語をすべて活用することができます。

ACISを使用したSAMINの精度管理システムを開発する際に考慮したもう1つのポイントは、組み立てプロセス中にブロックの干渉を検出する交差機能でした。また、ACISはTribon(商業船舶・艦艇設計用3次元CADシステム)の形状データに基づいて、船舶ブロックの3次元ソリッドモデルの構築を容易にします。

HOOPSのオープン・アーキテクチャと堅牢なグラフィック機能により、サミンは高性能な3D可視化アプリケーションを迅速に開発・維持することができた。特に、HOOPS のリファレンス・アプリケーションのソースコードは、開発プロセスを大幅に加速することができました。

最大デフォルト
サミン1
キャプチャデクラン 2024-09-12 164759

結果

ファースト・トゥ・マーケット・アプリケーション
EcoBLOCKとEcoOTSソフトウェアは2008年初めに市場に投入され、当初は中国の上海外高橋造船所で導入された。SAMINの技術が成功を収めたことで、アジアの多くの造船所の門戸が開かれた。

Spatial社の3Dモデリング・カーネルを精度管理システムに組み込むことで、SAMIN社はソフトウェアを迅速に開発し、造船業界特有のニーズを満たしながら、いち早く市場に投入することができました。顧客の反応は圧倒的に好意的で、サミンの技術は画期的で、造船業者はより少ない労力でより迅速に船を建造することでコストを削減できると評価されている。

現在、SAMIN社はACISの機能の約40%を自社のソフトウェア製品に使用しており、今後のリリースではACISの強力な機能をさらに取り入れる予定である。

SAMIN3

重要な洞察

スペイシャルのSDKが業界をリードしているのには理由があります
グループ111

解決策

SAMIN社は、自社のソフトウェアの成功に不可欠なものとして、これらのSpatial機能を挙げている:

  • コードに基づく船舶ブロックの3Dソリッドモデルの構築

  • ACISを使用したトライボンの形状データ

  • HOOPSを使用した3D船舶モデルの視覚化

  • ACIS/HOOPSを使用した3D船舶モデルの移動と回転

  • 3D船舶モデルの座標取得

  • ACISを使用した船舶部品間の衝突検出

  • HOOPSによる各種マークアップの可視化

事例の全文をダウンロード

スペイシャルの技術を使って、Samin社がどのように3D精度管理システムと架設シミュレーションシステムを開発したのか、事例の全文をダウンロードして詳細をご確認ください。
